Nidec HD25P1ES 25 hp 3600 RPM 284TS Frame 208-230/460V TEFC

Product Description

The Nidec HD25P1ES is a powerful electric motor designed for various industrial applications. With a horsepower of twenty-five and a speed of three thousand six hundred RPM, this TEFC motor operates efficiently at both two hundred eight and two hundred thirty or four hundred sixty volts.

• Designed for harsh environments with corrosion-resistant features.
• Provides a rigid base mount and a keyed shaft for secure installation.
• Ideal for uses in mills, chemical plants, and waste management facilities.

Product Highlights

This motor features a three-phase design and offers continuous duty operation with a service factor of 1.15, ensuring reliable performance for demanding tasks.

Product Information

Standard Information

• Brand: Nidec
• MPN: HD25P1ES

Technical Specifications

• Horsepower: 25 hp
• Speed: 3600 RPM
• Voltage: 208-230/460 Volts

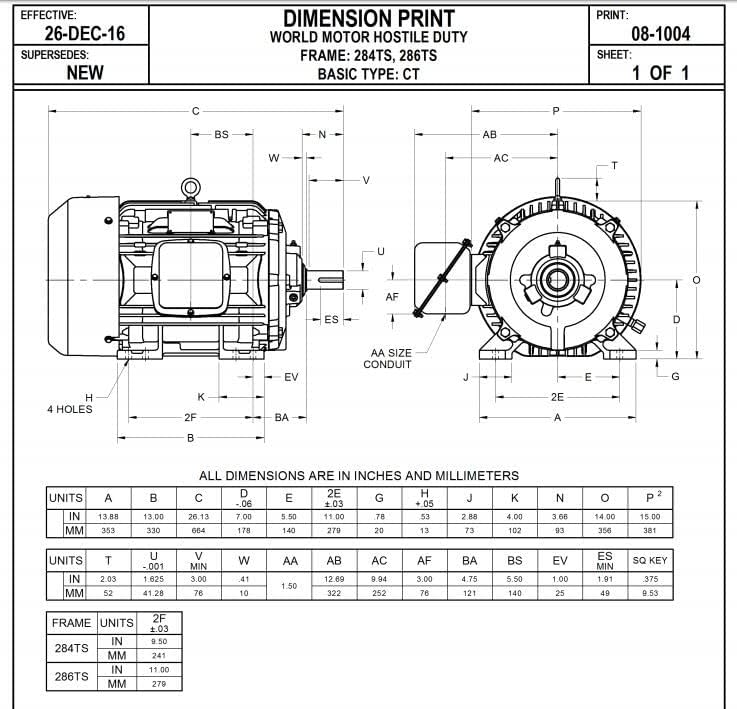

• Frame Size: 284TS
• Material: Cast Iron
• Insulation Class: F
• Amperage: 58.0/28.8 Amps
• Overload Protection: None
• Mounting Type: Rigid Base, Horizontal
• Bearings: Ball / Ball
