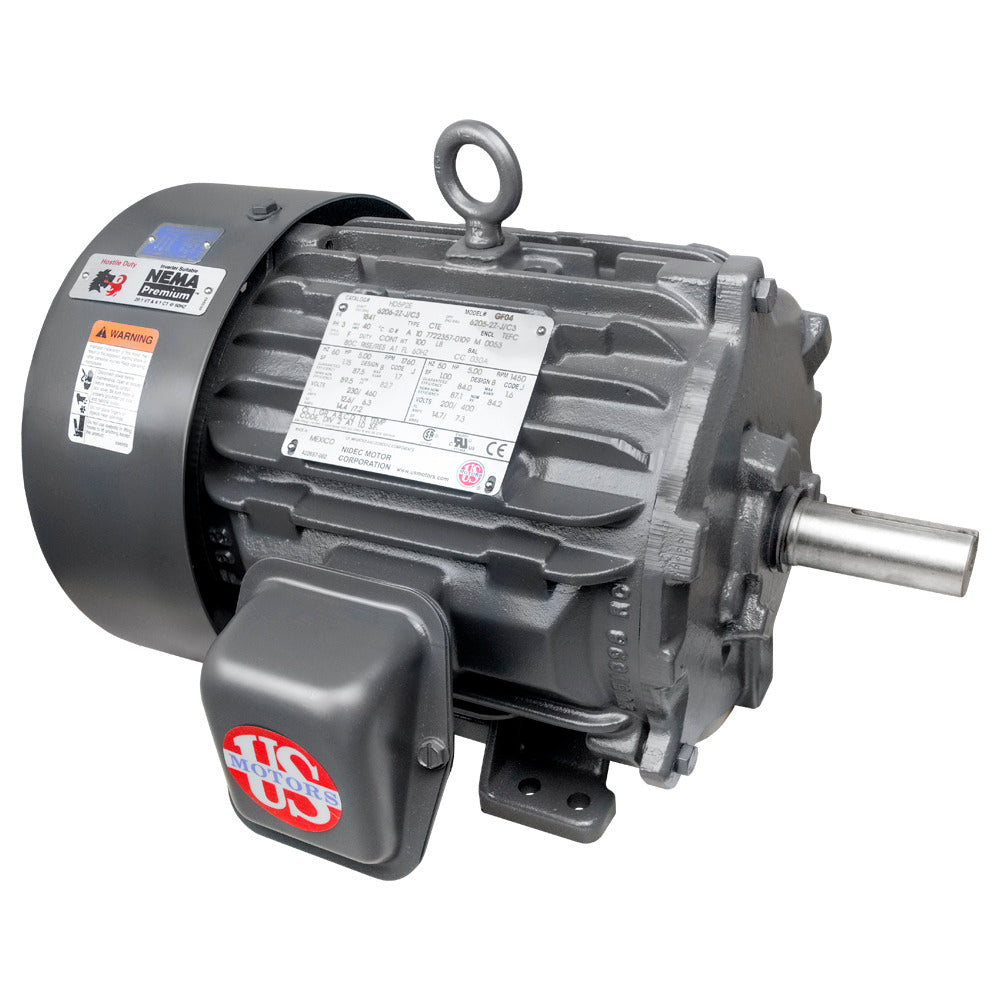

US-Nidec HD20V1B Inverter Duty Motor 20HP 3600RPM 230/460V TEFC Three Phase 256T Frame

Product Description

The US-Nidec HD20V1B Inverter Duty Motor is built for demanding applications requiring reliable performance. It features a 20 horsepower motor running at 3600 rotations per minute. This three-phase motor operates at 230/460 volts and is enclosed in a TEFC (Totally Enclosed Fan Cooled) frame.

• High performance with 20 horsepower
• Operates at 3600 RPM for efficiency
• TEFC enclosure ensures durability

Product Highlights

Designed for inverter duty applications, the US-Nidec HD20V1B motor is suitable for use in a variety of industrial and commercial environments. Its three-phase operation and high RPM make it ideal for heavy-duty tasks.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: HD20V1B
• Voltage: 230/460
• Horsepower: 20 HP

Technical Specifications

• Electrical Type: Three Phase
• RPM: 3600
• Frame: 256T
• Enclosure: TEFC
• Material: Cast Iron
• Bearings Type: Ball / Ball
• Bearings Size: 6209-2Z-J/C3 / 6309-2Z-J/C3
• Mounting: Horizontal / Footed
• Efficiency: 91.00%
• Insulation Class: F
• Service Factor: 1.15
• Rotation: REV
