Brand: US MOTORS
SKU: HD20P1E
Availability: Out Of Stock
$1,368.75
$1,368.75
LTL Delivery

This product weighs 285 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Nidec HD20P1E electric motor is a reliable choice for various industrial applications. This 20 horsepower motor operates at 3600 RPM and features a 256T frame. Designed to run on 208-230/460 volts, it uses a three-phase power supply.

  • 20 hp, 3600 RPM
  • 256T Frame, 208-230/460 Volts
  • TEFC Enclosure

Product Highlights

Premium efficiency cast iron frame motor suitable for harsh conditions.

Product Information

Standard Information

  • Frame: 256T
  • Voltage: 208-230/460 V

Technical Specifications

  • Horsepower: 20 hp
  • Speed: 3600 RPM
  • Enclosure: TEFC
  • Amperage: 46/23
  • Insulation Class: F
  • Material: Cast Iron
  • Duty: Hostile Duty
  • Service Factor: 1.15
  • Efficiency: 91.00%
  • Bearings Type: Ball
  • Mounting Type: Horizontal / Footed

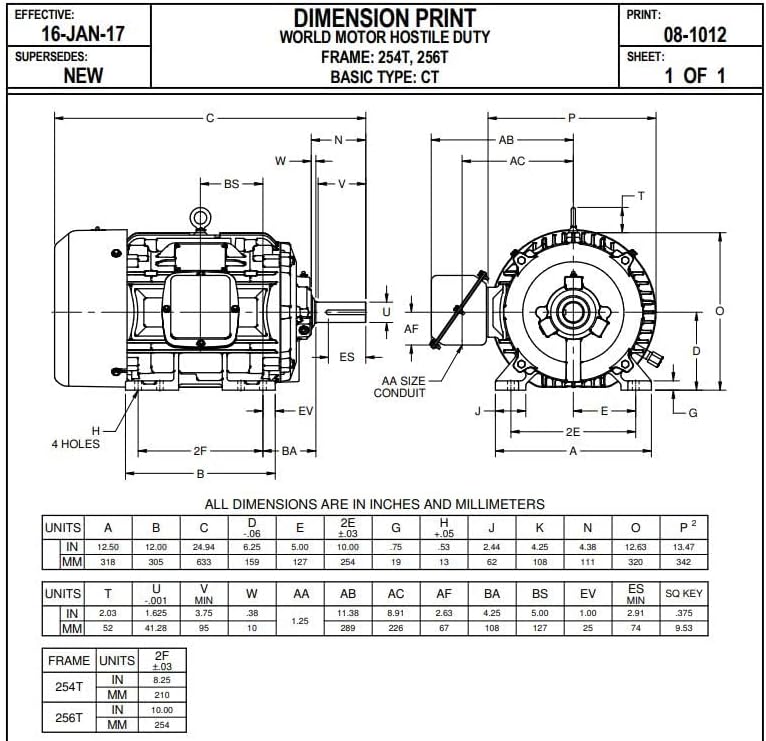

  • Dimensions (C): 24.9 inches
