Nidec HD1P3E 1 hp 1200 RPM 145T Frame 230/460V TEFC

Product Description

The Nidec HD1P3E is a one horsepower, 1200 RPM electric motor designed for demanding applications. It operates on a dual voltage of two hundred thirty or four hundred sixty volts and features a Totally Enclosed Fan Cooled (TEFC) design. This motor is suitable for various industrial uses including pulp and paper plants, saw mills, and foundries.

• 1 hp power output at 1200 RPM
• TEFC design for durability in harsh conditions
• Three-phase operation with low amperage

Product Highlights

This motor is designed for continuous duty and features a rugged build. Its efficient operation makes it ideal for various industrial settings. The corrosion-resistant features add to its longevity.

Product Information

Standard Information

• Brand: Nidec
• MPN: HD1P3E

Technical Specifications

• Horsepower: 1 hp
• Speed: 1200 RPM
• Voltage: 230/460 Volts
• Amperage: 3.7/1.8

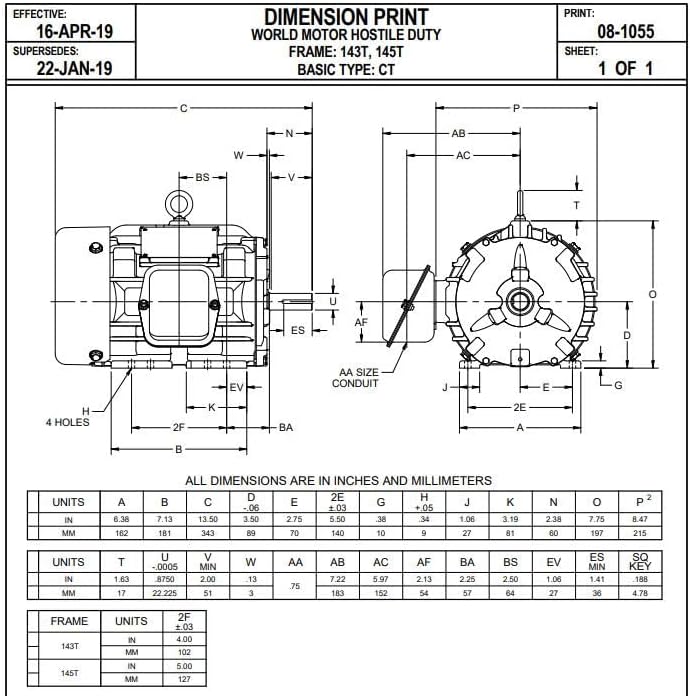

• Frame Size: 145T
• Insulation Class: F
• Service Factor: 1.15
• Weight: 70 pounds
