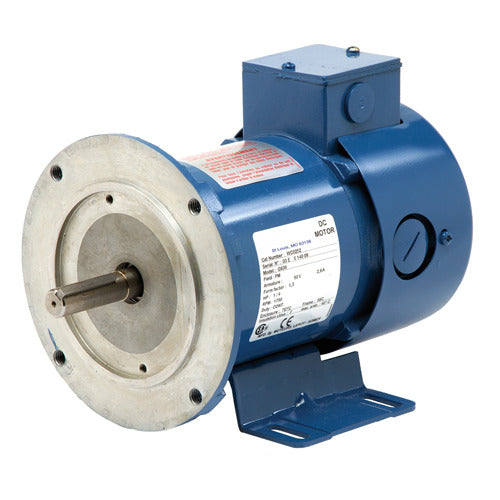

Nidec G637 DC Perm Mag Motor 1/3 HP 1750 RPM 90V 56C Frame

Product Description

The Nidec G637 is a DC permanent magnet motor designed for efficiency and consistent performance. This motor operates at one-third horsepower and reaches a nameplate RPM of 1750. Built for robust applications, it works at a voltage of ninety and fits a thirty-six frame size.

• Permanent Magnet DC motor design
• Compatible with C-Face and footed mounting
• Constructed with rolled steel for durability

Product Highlights

The G637 is suitable for various applications where reliable motor performance is essential. Ideal for HVAC systems, this motor provides flexibility in speed control.

Product Information

Standard Information

• Brand: Nidec
• MPN: G637

Technical Specifications

• Type: Permanent Magnet DC Motor
• Horsepower: 1/3 HP
• Nameplate RPM: 1750
• Voltage: 90V
• Frame Size: 56
• Construction Material: Rolled Steel
• Phase: Single
• Mounting Type: C-Face / Footed
• Shaft Type: Single
• Enclosure Type: Totally Enclosed Fan-Cooled
• Full Load Amps: 14.0
• Torque: 108 in-lb
• Max Ambient Temp: 40 Degrees C
• Motor Bearings: Ball
• Duty Cycle: Continuous
