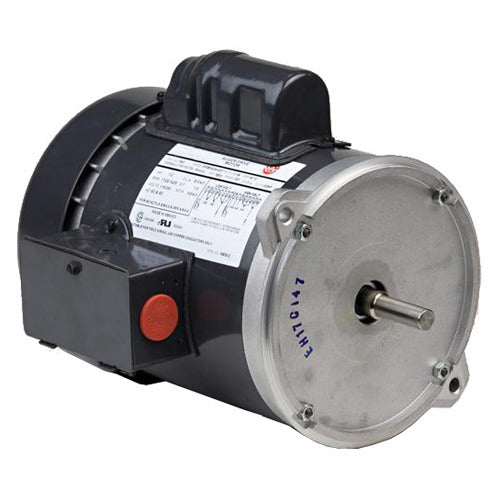

US-Nidec FD34CM2PZY Auger Drive Motor 3/4 HP Replaces 5K046

Product Description

The US-Nidec FD34CM2PZY Auger Drive Motor is a reliable component in farm duty applications. Designed to handle rigorous conditions, this motor offers efficiency and durability.

• 3/4 HP capacity
• 115/230V dual voltage
• Manual overload protection

Product Highlights

This double ball bearing motor with TEFC enclosure is ideal for replacing defective units in agricultural setups. It supports reverse rotation and comes with a rolled steel frame for added strength.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: FD34CM2PZY

Technical Specifications

• Electrical Type: Cap Start
• HP: 3/4
• Frame: 56YZ
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Single
• Voltage: 115/230
• Rotation: REV
• Overload Protector: Manual
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Mounting: N-Flange
• Amperage: 10.6/5.3 & 11.8/5.9
• Shaft Type: Single
• Insulation Class: B
• Service Factor: 1
• Frame Size: 56YZ
