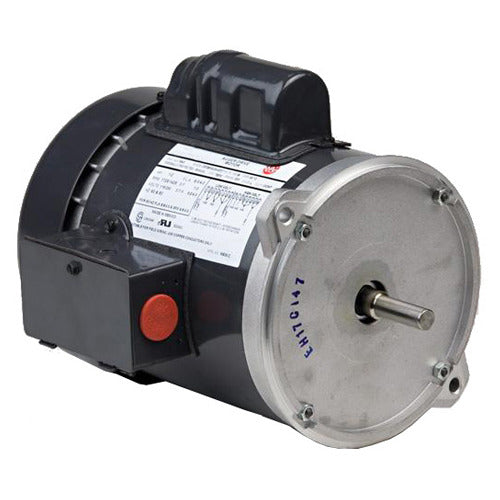

US-Nidec FD32PM2DZYR Auger Drive Motor 1 1/2 HP 208-230/460V

Product Description

The US-Nidec FD32PM2DZYR Auger Drive Motor delivers reliable performance for farm duty operations. This three-phase motor features a power rating of 1 1/2 HP and operates at 208-230/460 volts. It is designed with a 56Y frame and a 6.5-inch diameter, enclosed in a TEFC (Totally Enclosed Fan Cooled) housing for protection against environmental elements.

• Three-phase electrical type
• 56Y frame diameter
• Manual overload protection

Product Highlights

This US-Nidec motor integrates a single shaft and ball bearings type for durability, making it suitable for heavy-duty farm operations. Its rolled steel material ensures a robust build, while the N-Flange mounting type simplifies installation.

Product Information

Standard Information

• Brand: US-Nidec
• Model: FD32PM2DZYR

Technical Specifications

• Motor Type: Auger Drive Motor
• Electrical Type: Three Phase
• Horsepower: 1 1/2
• Frame: 56Y
• Diameter: 6.5 inches
• Enclosure: TEFC
• Voltage: 208-230/460
• Rotation: REV
• Overload Protection: Manual
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting Type: N-Flange
• Amperage: 4.5/2.2 & 4.5-4.5/2.2
• Shaft Type: Single
• Efficiency: 86.50 percent
• Service Factor: 1.15
• Insulation Class: B
