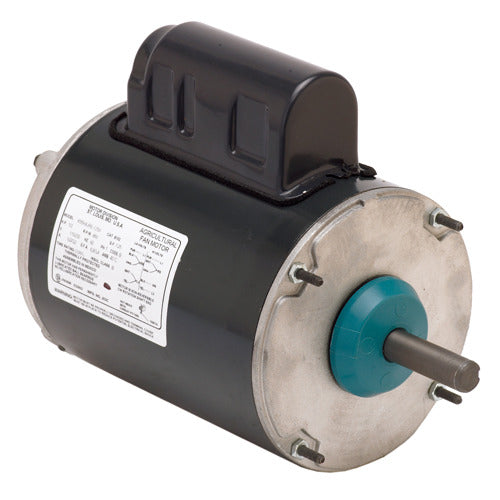

US-Nidec FD32CPA2P Agricultural Fan Motor 1 1/2 HP (56 Frame) REPLACEMENT MPN

Product Description

The US-Nidec FD32CPA2P is a powerful agricultural fan motor designed for reliable performance in agricultural applications. With a horsepower rating of one and a half and a frame size of fifty-six, this motor efficiently operates on single-phase voltage options of one hundred fifteen or two hundred thirty volts.

• Electrical type: Capacitor Start
• Enclosure Type: Totally Enclosed Air Over (TEAO)
• Mounting Type: Rigid Base

Product Highlights

This motor is suitable for various farm equipment and applications, providing consistent airflow and high efficiency.

Product Information

Standard Information

• Motor Type: Agricultural Fan Motor
• Power Rating: 1 1/2 HP

Technical Specifications

• Frame Size: 56
• Diameter: 6.5 inches
• Phase: Single
• Voltage: 115/230
• Rotation: Reverse
• Material: Rolled Steel
• Amperage: 13.6/6.8
• Efficient: 83.80%
• Service Factor: 1.3
• Overload Protector: Auto
• Bearings Type: Ball/ Ball
• Bearings Size: 6203 / 6203
