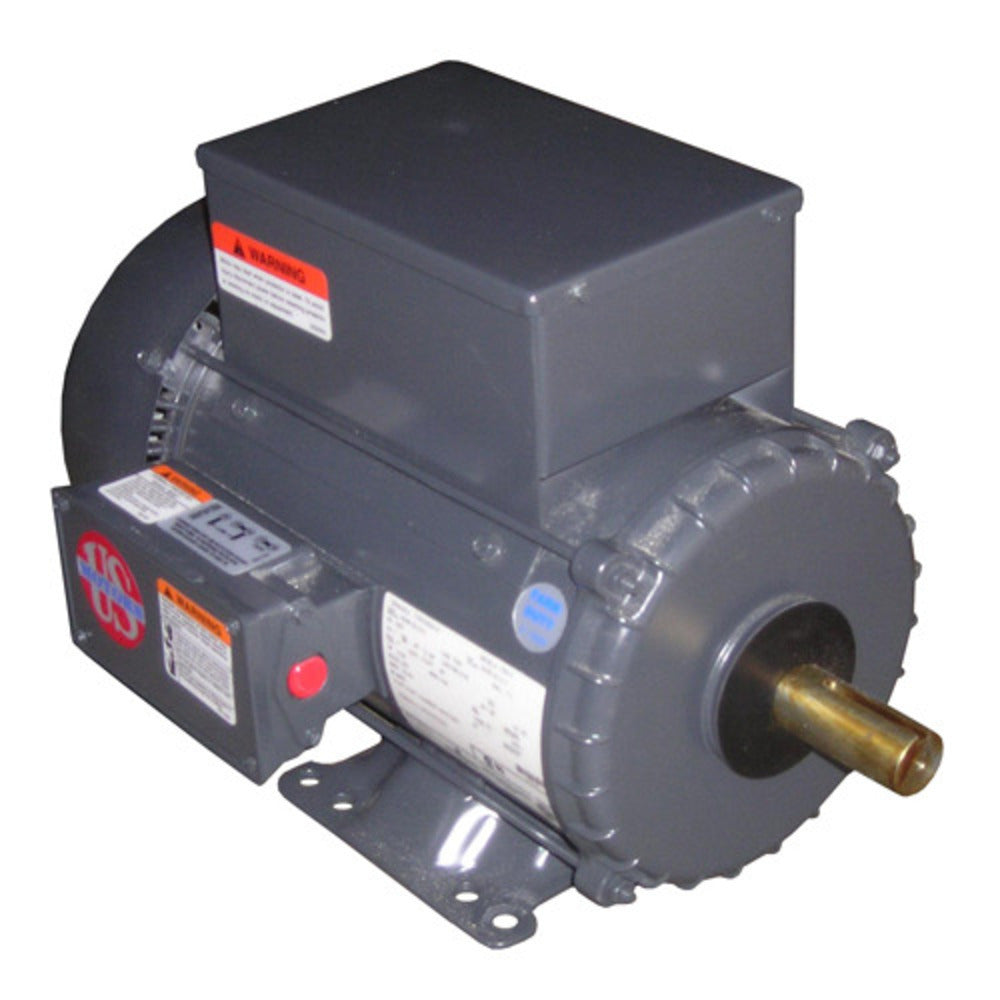

Nidec FD32CM2PH Farm High Torque 1 Ph Motor, 1-1/2 HP, Cap Start, 1800 RPM, 115, 230V, 56H Frame

Product Description

The Nidec FD32CM2PH motor is a high torque farm duty motor designed for various agricultural applications. With a capacitor-start mechanism, this motor ensures high performance and durability.

• 1-1/2 HP capacity
• 1800 RPM speed
• 115/230 volts

Product Highlights

This farm duty motor from Nidec is perfect for tough agricultural environments. It features a capacitor-start for improved efficiency and a rolled steel construction for enhanced durability. The motor operates at 1800 RPM and can handle both 115 and 230 volt inputs.

Product Information

Standard Information

• Brand: Nidec
• Model: FD32CM2PH

Technical Specifications

• HP: 1-1/2
• RPM: 1800
• Voltage: 115/230
• Frame: 56H
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Single
• Rotation: REV
• Overload Protector: Manual
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Mounting Type: Rigid Base
• Amperage: 16.2/8.1
• Efficiency: 81.00%
• Insulation Class: B
• Service Factor: 1.15
