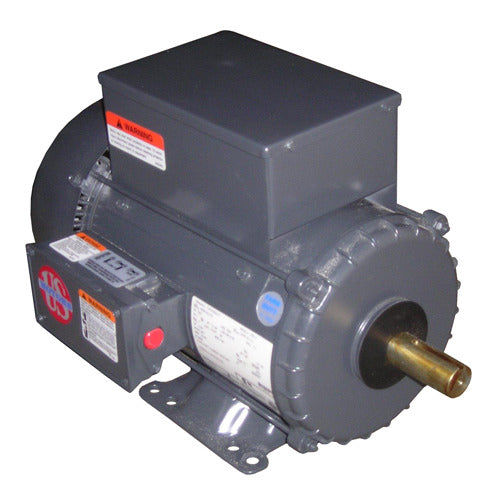

Nidec FD13CM2P Farm High Torque 1 Ph Motor, 1/3 HP, Cap Start, 1800 RPM, 115, 230V, 56 Frame

Product Description

The Nidec FD13CM2P is a farm high torque motor designed for various agricultural applications. It features 1/3 HP and a capacitor start mechanism for efficient power delivery. This single-phase motor operates at 1800 RPM.

• Farm Duty Motor
• Capacitor-Start
• 1/3 HP

Product Highlights

Ideal for agricultural and farm applications, the Nidec FD13CM2P delivers reliable performance in tough conditions. It features a totally enclosed fan-cooled design, protecting it from dust and moisture.

Product Information

Standard Information

• Brand: Nidec
• MPN: FD13CM2P

Technical Specifications

• Motor Type: Capacitor-Start
• HP: 1/3
• Nameplate RPM: 1800
• Voltage: 115/230
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Single
• Rotation: REV
• Overload: Manual
• Material: Rolled Steel
• Bearings Type: Ball
• Bearings Size: 6203
• Mounting: Rigid Base
• Amperage: 6.6/3.3
• Efficiency: 59.50%
• Service Factor: 1.15
