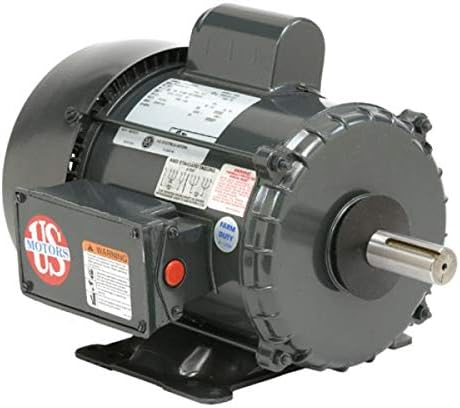

Nidec FD12CM2P Air Compressor Motor 1/2 HP Cap Start 1800 RPM 115 230V 56 Frame

Product Description

The Nidec FD12CM2P Air Compressor Motor is engineered to deliver reliable performance for industrial and commercial applications. This motor provides a 1/2 HP output, ensuring efficient operation for various equipment.

• Cap Start design for enhanced reliability
• Operates at 1800 RPM
• Compatible with 115V and 230V systems

Product Highlights

The Nidec FD12CM2P motor features a robust build ideal for demanding environments. Its compact 56 frame size allows easy integration into existing systems, and its versatile voltage compatibility ensures wide application use.

Product Information

Standard Information

• Brand: Nidec-US Motors
• Item Number: FD12CM2P
• Country of Origin: Mexico

Technical Specifications

• Amperage: 9.0/4.5
• Bearings Type: Ball / Ball
• Diameter: 6.5 inches
• Efficiency: 63.70%
• Enclosure: TEFC
• Frame: 56
• Horsepower: 1/2 HP
• Insulation Class: F
• Mounting: Rigid Base
• Phase: Single
• Rotation: REV
• Shaft Type: Single
• Service Factor: 1.15
• Voltage: 115/230V
