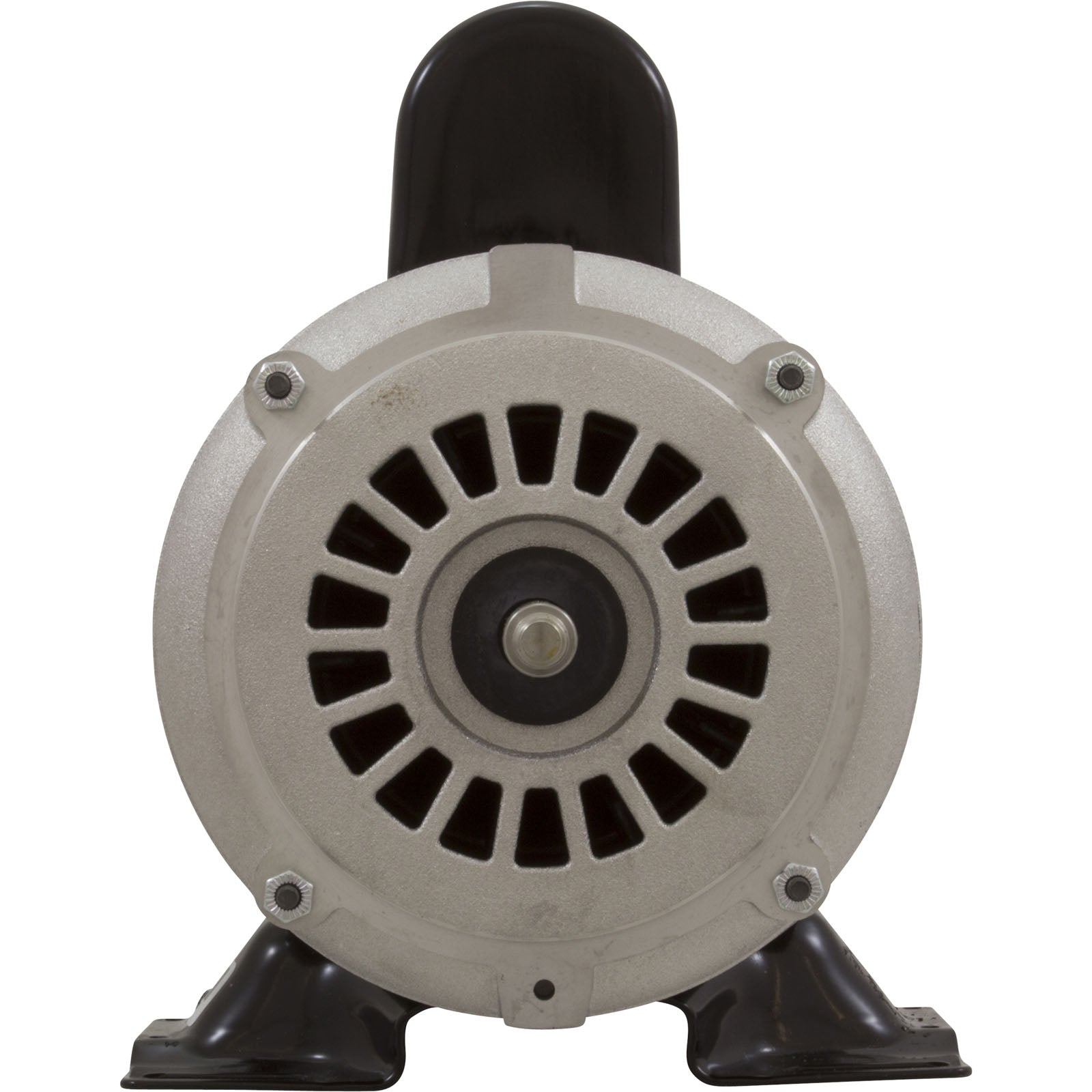

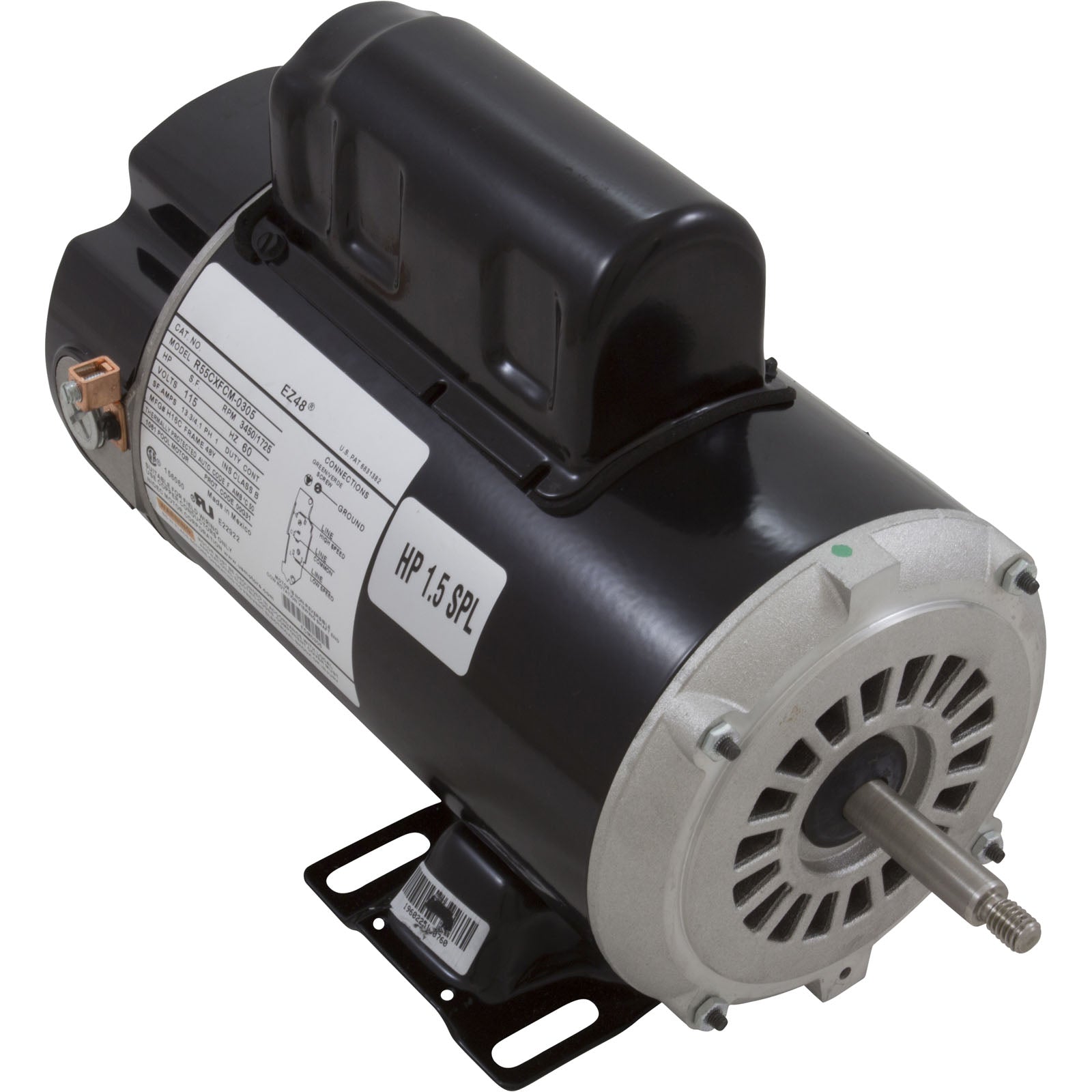

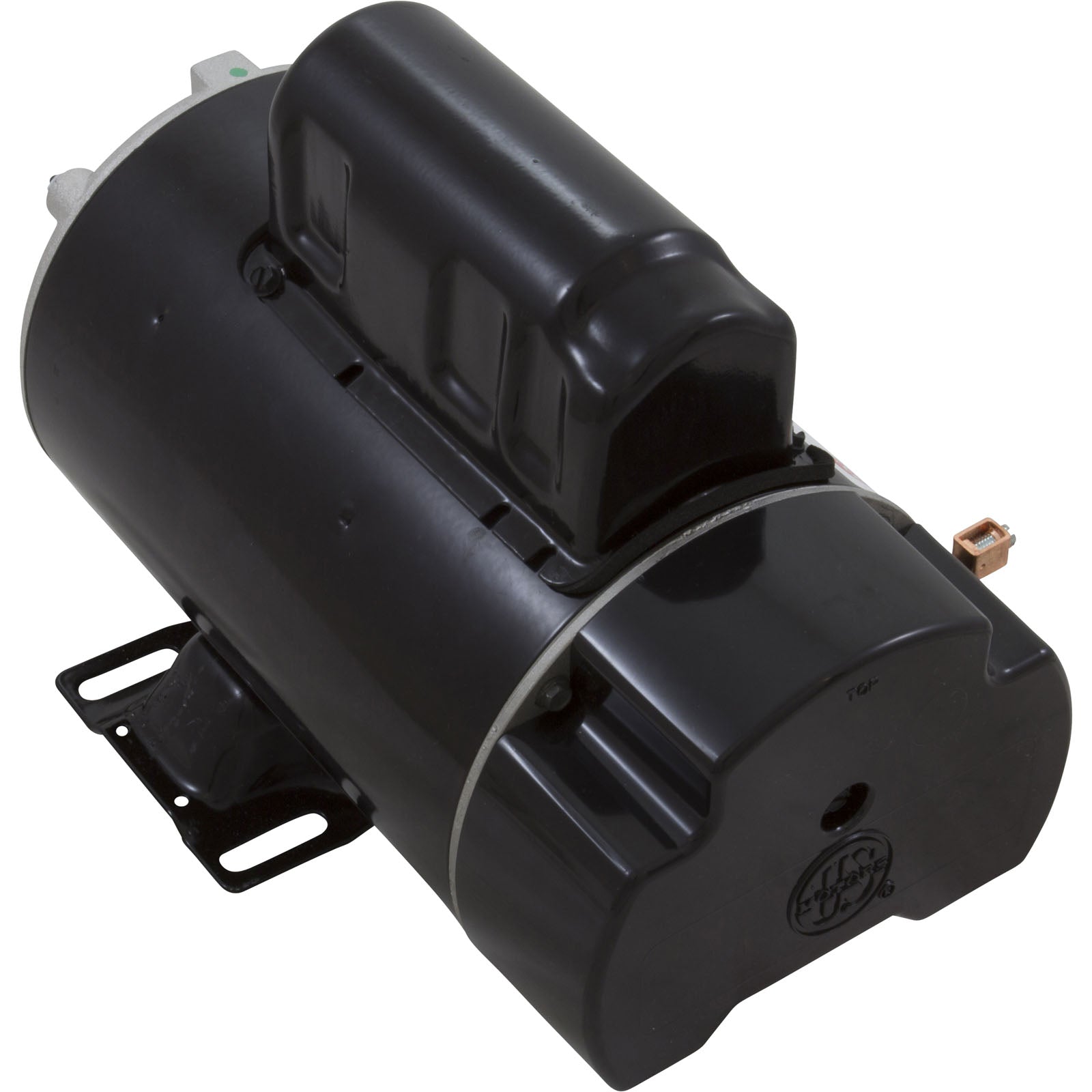

Nidec EZBN50 Motor, US Motor/WW, 1.5SPL, 115v, 2 Speed, 48 Frame

Product Description

The Nidec EZBN50 Motor is designed for pool and spa applications. This motor operates at one and a half horsepower, uses one hundred fifteen volts, and features a two-speed capability. The 48 frame makes it suitable for various installations, ensuring effective performance.

• Splits phase operation for enhanced performance.
• Crafted from rolled steel for durability.
• Includes an automatic overload protector for safety.

Product Highlights

This motor efficiently powers pumps and is ideal for pool maintenance and water circulation.

Product Information

Standard Information

• Brand: Nidec Motor Corp
• MPN: EZBN50

Technical Specifications

• Electrical Type: Split Phase
• HP: 1 1/2
• Frame Size: 48Y
• Diameter: 5.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115
• Rotation: CCWSE
• Overload Protector: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting Type: Rigid Base / Extended Studs
• Amperage: 16.0/4.8
• Shaft Type: Single
