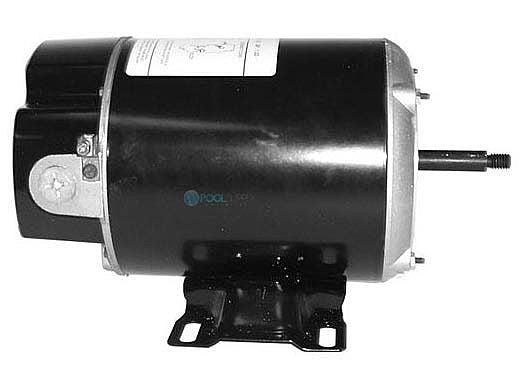

US-Nidec EZBN35 Pool and Spa Motor 1.5 HP 230/115V

Product Description

The US-Nidec EZBN35 Pool and Spa Motor is a reliable solution for pool and spa applications. This motor provides excellent performance with its 1.5 horsepower and compatibility with both 115V and 230V setups.

• Direct replacement for Hayward PowerFlo LX
• Single-speed operation
• Open Drip-Proof design

Product Highlights

This motor features a stainless steel shaft, sealed ball bearings, and a corrosion-resistant frame. It is easy to install and maintain with its thru-bolt mounting and rigid base. The motor also includes automatic overload protection to ensure durability.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: EZBN35

Technical Specifications

• Horsepower: 1.5 HP
• Voltage: 230/115V
• Frame: 48Y
• Diameter: 5.5 inches
• Enclosure: ODP
• Phase: Single
• Rotation: CCWSE
• Overload Protection: Auto
• Material: Rolled Steel
• Speeds: 1
• Bearings: Ball / Ball
• Mounting: Rigid Base / Extended Studs
• Amperage: 7.7/15.4
• Shaft Type: Single
• Frequency: 60 HZ
• Insulation Class: B
• Service Factor: 1
• Body Length: 9.8 inches
