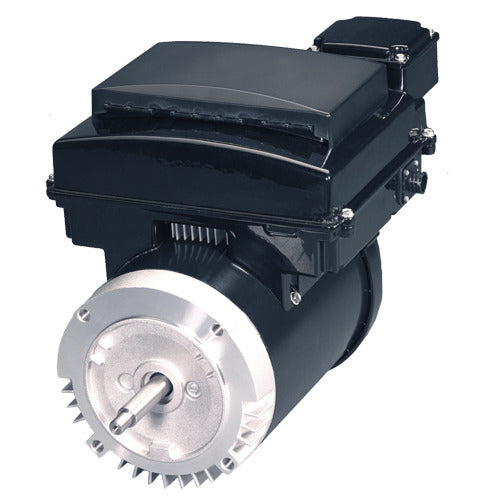

US-Nidec EVSS15-NS Pool and Spa Motor 2.40THP 56Y Frame Variable RPM

Product Description

The US-Nidec EVSS15-NS Pool and Spa Motor is an efficient solution for pool and spa applications. This motor offers variable speed and a 2.40 total horsepower rating.

• Efficient design for pool and spa use
• Variable speed motor control
• Electronic overload protection

Product Highlights

This pool and spa motor features a robust design with a TEFC enclosure and fits 56Y frame mounts. It provides electronic overload protection and variable speed settings for optimal performance. The motor's square flange and threaded shaft ensure compatibility with various pool and spa setups.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: EVSS15-NS
• Type: Motor > Pump Motor > Pool and Spa Motor
• Class: Pool and Spa Motor
• UPC Number: 786000000000

Technical Specifications

• Electrical Type: Three Phase
• THP: 2.4
• HP: 1 1/2
• KW: 1.1
• Stack: 2.25
• RPM: Variable
• Frame: 56Y
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Single
• Voltage: 230
• Rotation: CCWSE
• Overload Protection: Electronic
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6304
• Mounting: Square Flange
• Amperage: 10.0
• Shaft Type: Single
• Body Length: 13.250 inches
• Frequency: 50/60 HZ
• Insulation Class: B
• Poles: 4
• Service Factor: 1.6
• Service Factor Amperage: 10
• Premium Energy Efficient: TRUE
