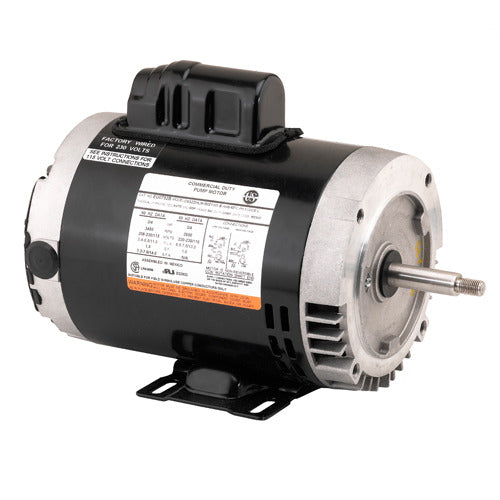

US-Nidec EU1502B Commercial Pump Motor 56J Frame 115/208-230 Voltage

Product Description

The US-Nidec EU1502B Commercial Pump Motor is designed to deliver reliable performance in various industrial and commercial applications. This motor features a 56J frame and operates on 115/208-230 voltage.

• 3600 RPM
• Single Phase
• Ball Bearings Type

Product Highlights

This US-Nidec commercial pump motor is built for continuous duty applications and boasts an auto overload protector to ensure safe and efficient operation. Ideal for powering pumps in various industrial settings, it is designed to withstand demanding environments.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: EU1502B
• Voltage: 115/208-230V AC

Technical Specifications

• RPM: 3600
• Frame: 56J
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Rotation: REV
• Overload Protector: Auto
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Mounting Type: C-Face
• Amperage: 21.8/11.3-10.9 A
• Height: 8 5/8 inches
• Weight: 34.5 lbs
• Motor Design: Capacitor-Start
• Max Ambient Temp: 104 degrees F
• Motor Frame Material: Steel
• Motor Shaft Rotation: CW
• Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
• Nominal Efficiency: 81.1%
• Overall Length: 12 7/8 inches
