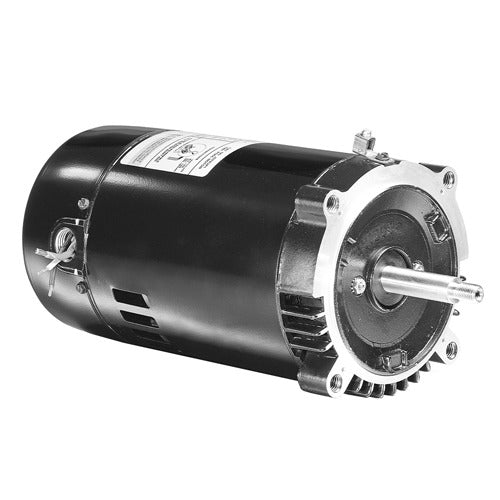

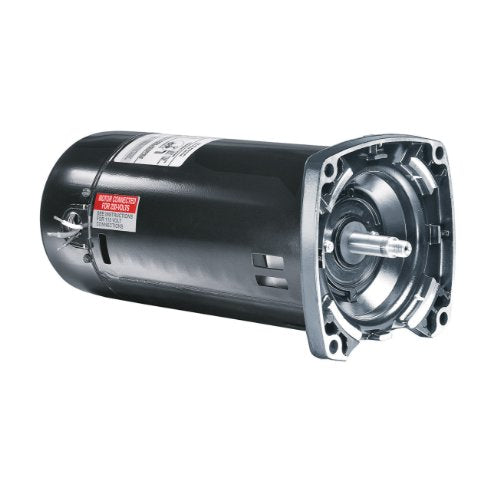

Nidec ESQ1152 Motor 1.5HP 115/230V 48Y Frame Open Drip Proof

Product Description

The Nidec ESQ1152 Motor is a reliable 1.5 horsepower electric motor designed for pool and spa applications. It operates on 115/230 volts and fits a 48Y frame. This single-speed motor provides consistent performance for continuous duty, with an open drip-proof enclosure and thermally protected design.

• 1.5 horsepower for robust performance
• Thermally protected and open drip proof
• Fits 48Y frame

Product Highlights

Ideal for pool and spa applications, the Nidec ESQ1152 motor ensures consistent performance. It features a square flange mounting and comes with triple bearing protection for durability.

Product Information

Standard Information

• Brand: Nidec
• MPN: ESQ1152

Technical Specifications

• Horsepower: 1.5 HP
• Voltage: 115/230V
• Frame: 48Y
• Enclosure: Open Drip Proof (ODP)
• Rotation: Counter Clockwise Shaft End (CCWSE)
• Insulation Class: B
• Material: Rolled Steel
• Service Factor: 1.5
• Phase: Single
• Mounting Type: Square Flange
• Bearings Type: Ball/Ball
• Shaft Type: Single
