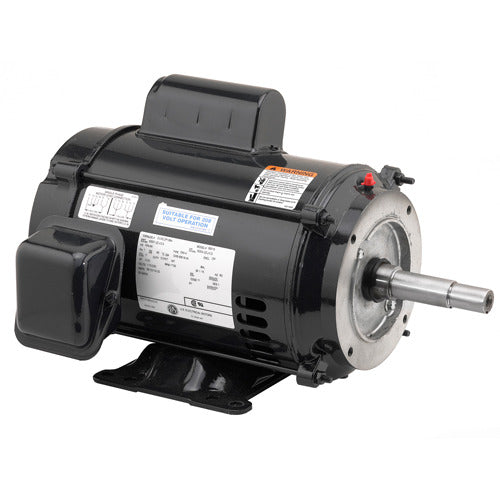

Nidec EJM154B Close-Coupled Pump Motor 1-1/2 HP 1800 RPM 115/208-230V 145JM

Product Description

Nidec US Motors EJM154B is a close-coupled pump motor designed for industrial applications. This motor operates at 1.5 HP and runs at 1800 RPM, making it suitable for various centrifugal pump requirements. With a voltage range of 115 and 208-230 volts, it supports diverse electrical configurations. Its robust design allows it to endure challenging environments, making it reliable for continuous use in demanding settings.

• Type: Close-Coupled Pump Motor
• Horsepower: 1.5 HP
• Voltage: 115/208-230V

Product Highlights

This motor features capacitor start technology for efficient operation. It is built with a rolled steel frame and oversized ball bearings to enhance durability. The EJM154B is designed for easy installation in any industrial setup.

Product Information

Standard Information

• Manufacturer: Nidec
• MPN: EJM154B

Technical Specifications

• Frame Size: 145JM
• Protection Type: Open Drip Proof
• Amperage: 16.0/8.3-8.0
• Material: Rolled Steel
• Rotation: Reverse
• Bearings Type: Ball
• Mounting Type: C-Face / Footed
