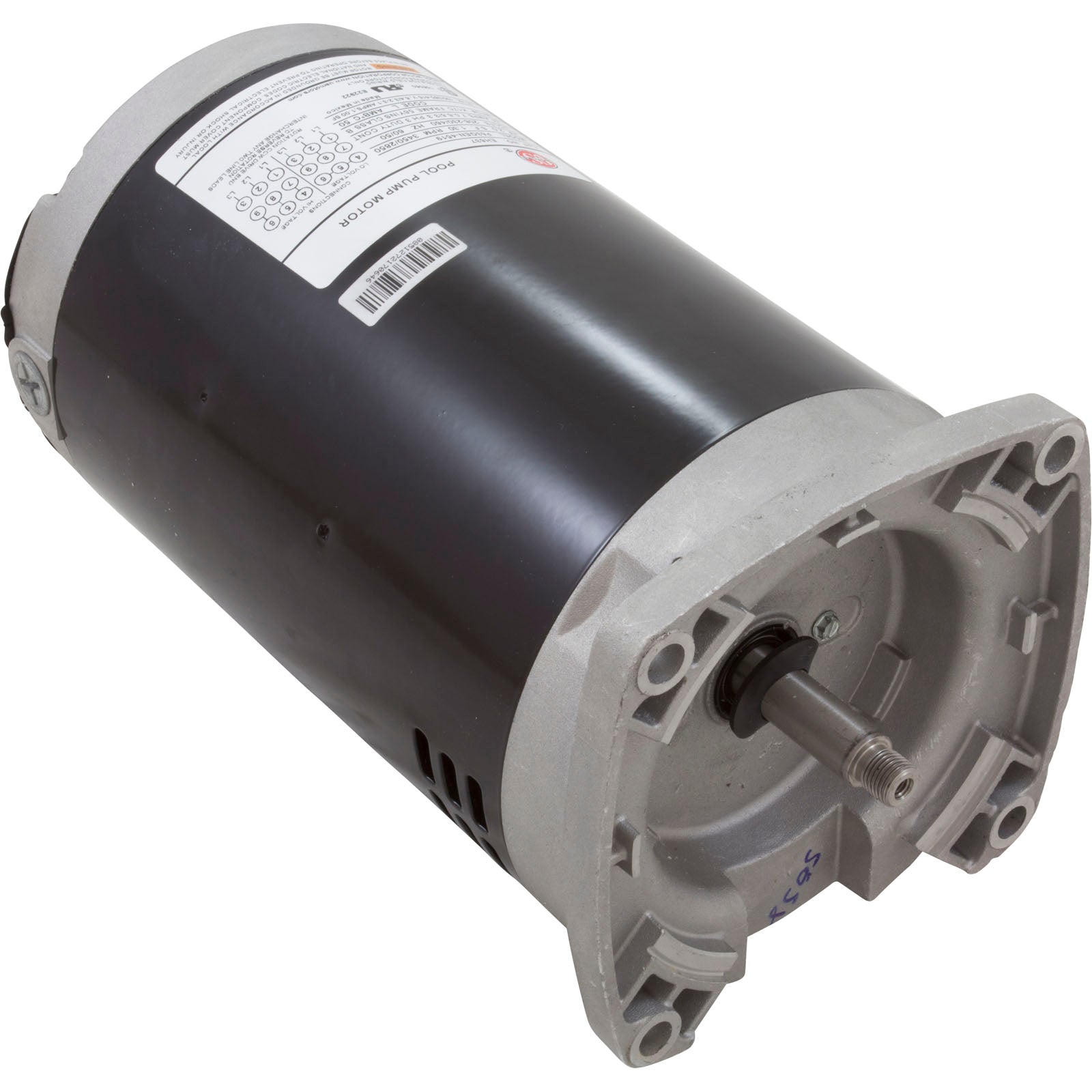

US Motors EH637 Motor, 2.0hp 208-230/460v, 1-SPD 56Yfr, SQFL, Full

Product Description

The US Motors EH637 is a three-phase motor designed for pool and spa applications. With a power rating of two horsepower and a voltage range of 208 to 230/460 volts, this motor provides reliable performance for continuous operation. Its square flange mounting type facilitates easy installation in various systems.

• Power: 2 HP
• Speed: Synchronous rotation at 3600 RPM
• Durability: Built with steel frame and ODP enclosure

Product Highlights

This motor is ideal for high-demand tasks such as pool and spa operation. It offers a straightforward design for easy maintenance and installation, ensuring a dependable choice for professionals in the field.

Product Information

Standard Information

• Brand: US Motors
• MPN: EH637

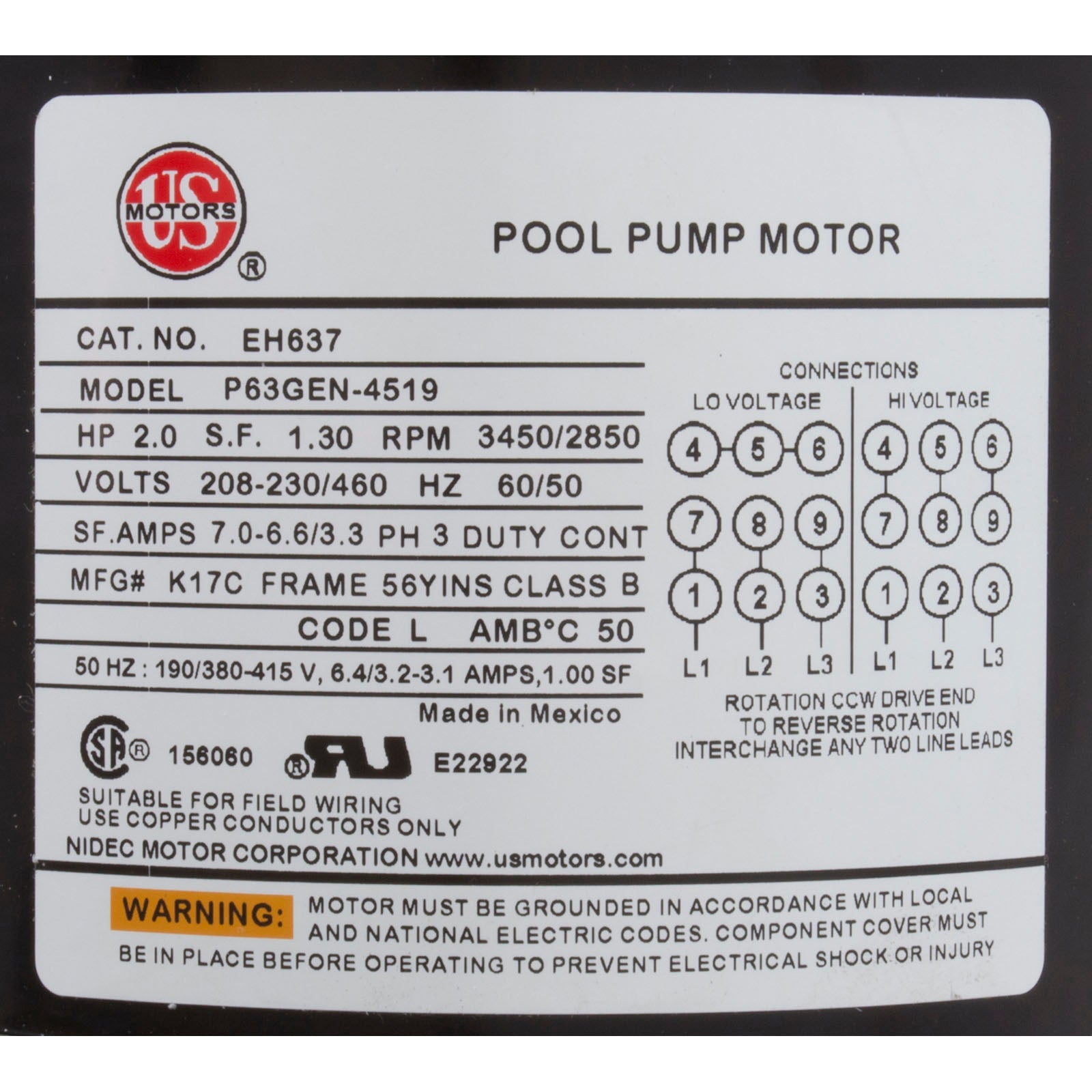

Technical Specifications

• Motor Phase: Three phase
• Frame Size: 56Y
• Frequency Rating: 50/60 Hz
• Enclosure Type: Open Drip Proof (ODP)
• Motor Poles: 2 P
• Supply Voltage: 208-230/460 V
• Amperage: 7.0-6.6/3.3 A

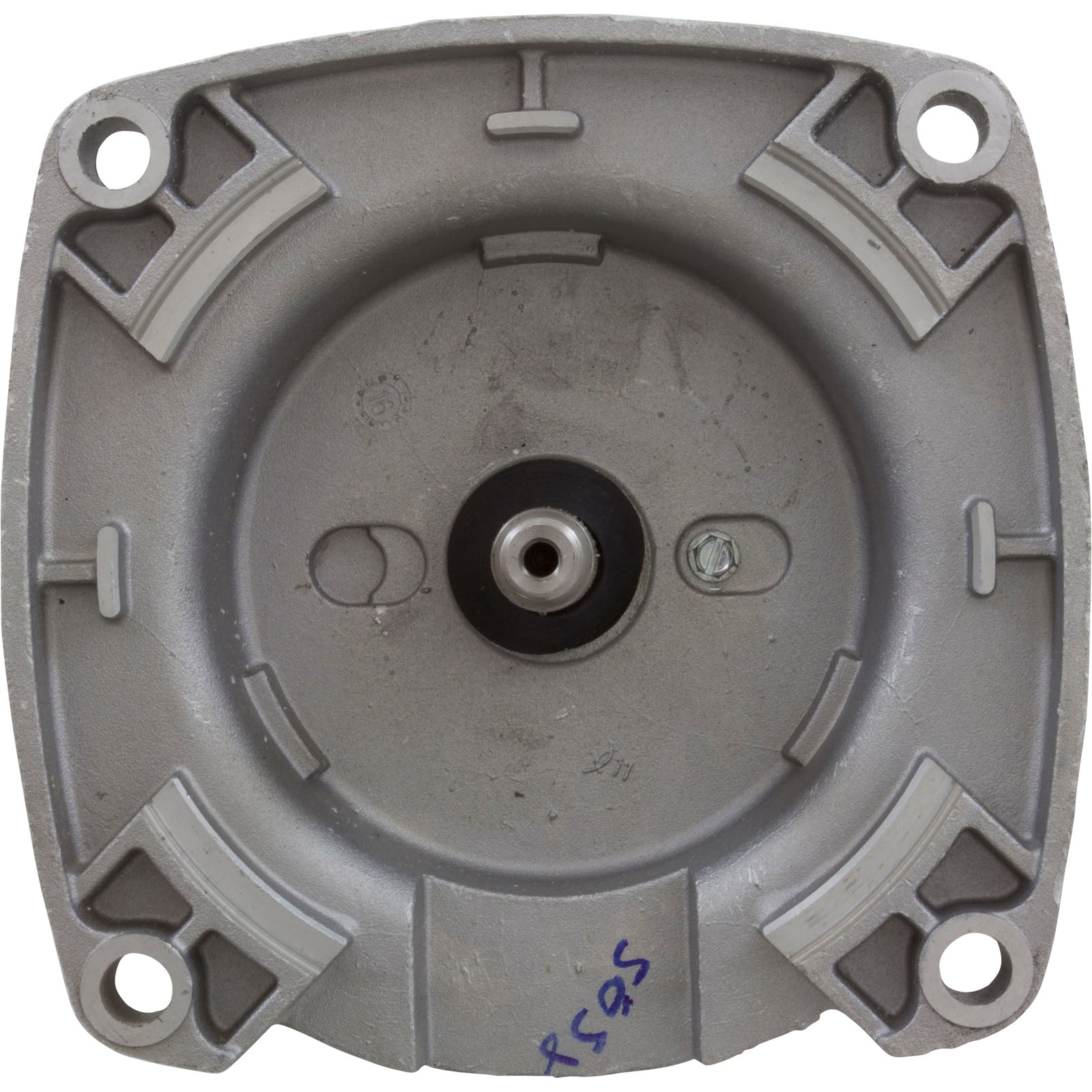

• Mounting Type: Square Flange
• Weight: Thirty pounds
• Dimensions: Twenty by fifteen by eleven inches
