Product Description

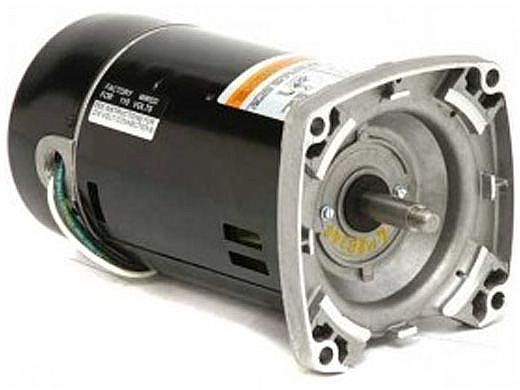

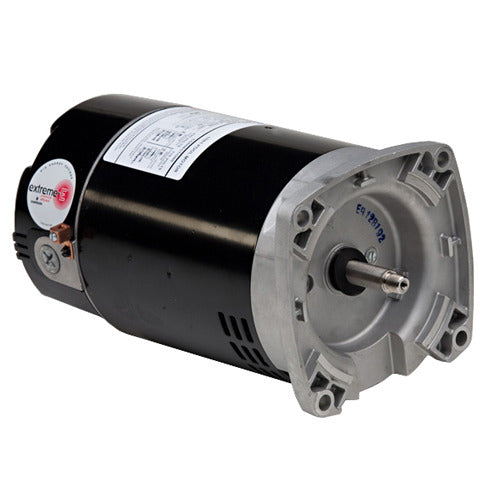

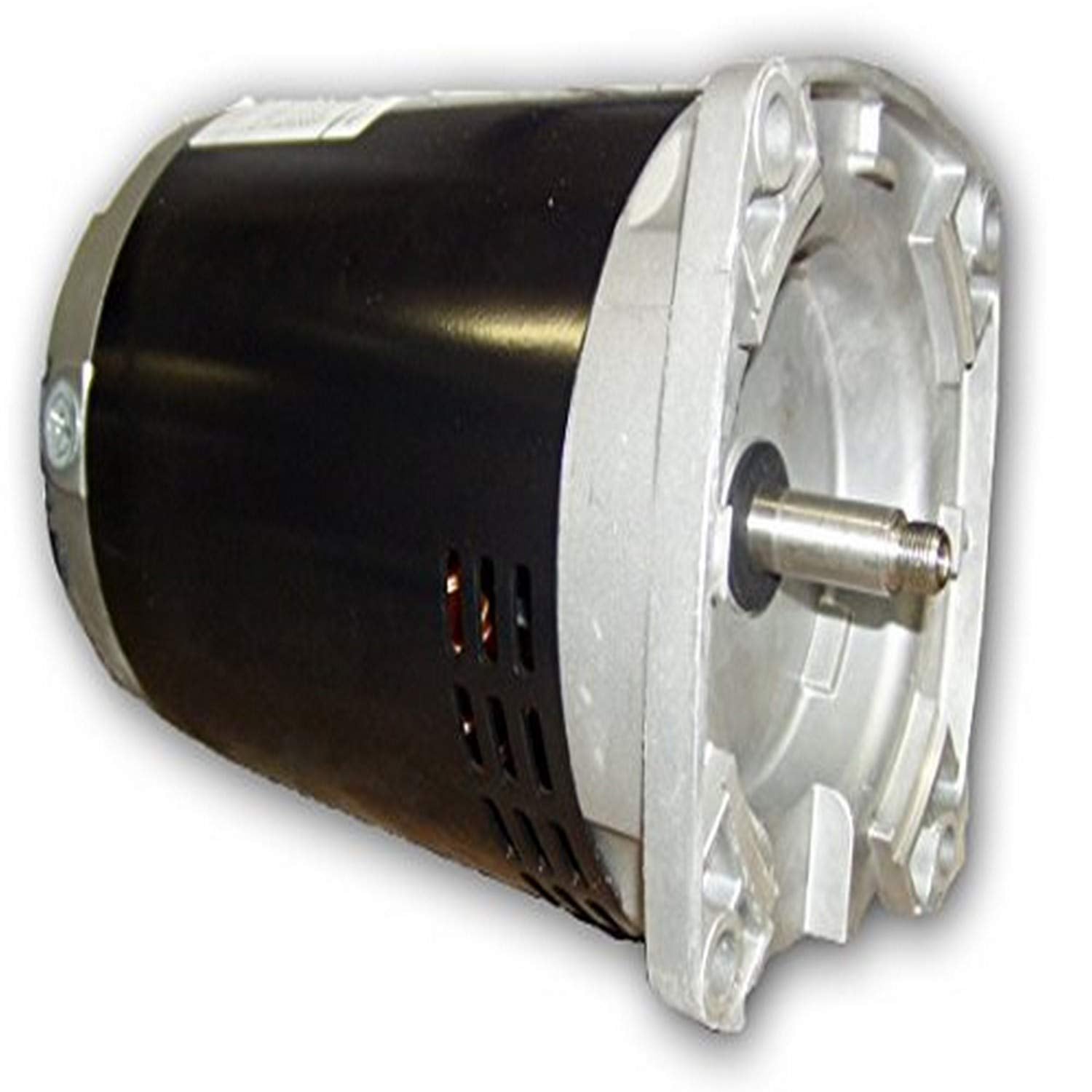

The Nidec EH635 motor is a reliable pool and spa motor. Designed by Nidec Motor Corporation, it is built for efficiency and durability.
- 1HP, Three Phase
- Voltage: 208-230/460V
- 56Y Frame
Product Highlights
This motor is ideal for pool and spa applications. It features a square flange and is built using rolled steel material. The motor is designed to operate efficiently in demanding environments.
Product Information
Standard Information
-
Brand: Nidec
-
MPN: EH635
-
Category: Motors
-
UPC: 786382074333
Technical Specifications
-
Electrical Type: Three Phase
-
Power: 1HP
-
Frame: 56Y
-
Diameter: 6.5 inches
-
Enclosure: ODP
-
Phase: Three
-
Voltage: 208-230/460
-
Rotation: REV
-
Material: Rolled Steel
-
Bearings Type: Ball / Ball
-
Mounting: Square Flange
-
Amperage: 4.8-4.6/2.3
-
Shaft Type: Single
-
Frequency: 60 HZ
-
Insulation Class: B
-
Service Factor: 1.65
-
Body Length: 10.270 inches
