Product Description

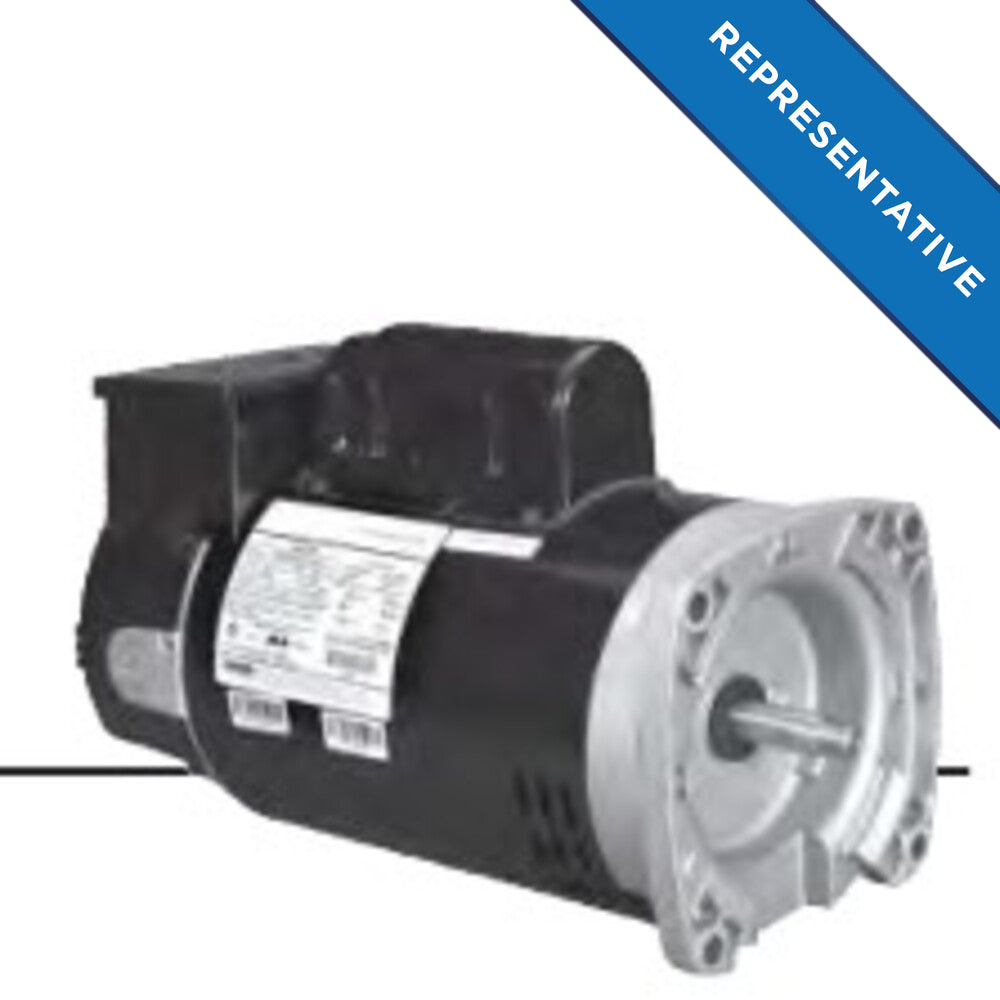

The U.S. Motors Model EH616 is a reliable pump motor designed for pool and spa applications. It operates on three-phase electrical power and provides 1 1/2 horsepower. This motor operates at 3450 RPM, making it an efficient solution for various water circulation needs.
- 1 1/2 HP, Three-Phase Motor
- Operates at 3450 RPM
- Rolled Steel Construction
Product Highlights
This motor features a C-face mounting and a durable rolled steel body. Designed to handle demanding pool and spa applications, it provides reliability and efficiency.
Product Information
Standard Information
-
Brand: U.S. Motors
-
Model: EH616
-
Application: Pool and Spa Pump Motor
-
Material: Rolled Steel
Technical Specifications
-
Electrical Type: Three Phase
-
Horsepower: 1 1/2
-
Diameter: 6.5 inches
-
Enclosure: ODP
-
Voltage: 208-230/460
-
Rotation: REV
-
Bearings Type: Ball / Ball
-
Mounting Type: C-Face
-
Amperage: 6.0-5.8/2.9
-
Frequency: 60 HZ
-
Insulation Class: B
-
Service Factor: 1.3
-
Frame Size: 56C
-
Body Length: 9.310 inches
