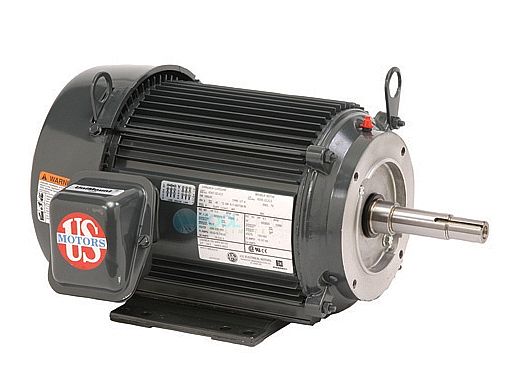

US Motors EEQK1500 Motor 15 Horsepower Three Phase 208-230-460V

Product Description

The US Motors EEQK1500 is a three-phase electric motor with a power rating of fifteen horsepower. It operates at voltages of two hundred eight, two hundred thirty, or four hundred sixty volts. This motor is designed for various industrial applications where robust performance and reliability are crucial.

• 15 horsepower rating for heavy-duty applications.
• Operates on three-phase power supply.
• Versatile voltage options: 208V, 230V, and 460V.

Product Highlights

This motor features a rolled steel construction for durability and is suitable for continuous duty applications.

Product Information

Standard Information

• Manufacturer: Nidec Motor Corp/US Motors
• MPN: EEQK1500

Technical Specifications

• Type: Three Phase
• Horsepower: 15 HP
• RPM: 3600
• Frame Size: 215JMZ
• Enclosure Type: Open Dripproof (ODP)
• Voltage: 208-230/460
• Amperage: 1.15
• Mounting Type: C-Face / Footed
• Efficiency Rating: 91%
• Insulation Class: F
