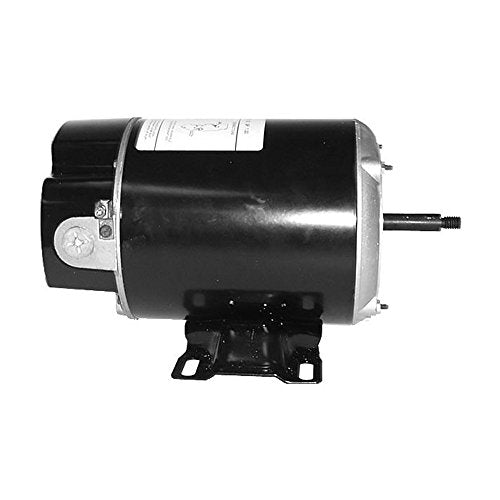

US Motors EEQ500 Pentair EQ Pump Series Replacement Pool Motors Single Phase 230V 5HP

Product Description

The US Motors EEQ500 is a motor for the Pentair EQ Pump Series. Designed for single-phase, 230V operations and offers 5 horsepower. This motor is a reliable replacement for various applications in pools and spas.

• 5 Horsepower motor
• Single-phase 230V operation
• Compatible with Pentair EQ Pump Series

Product Highlights

This motor delivers efficient performance and is built to last with features like a stainless steel shaft, permanently lubricated ball bearings, and a rigid base.

Product Information

Standard Information

• Manufacturer: US Motors
• Model: EEQ500
• UPC: 786382097035
• Power: 5HP
• Voltage: 230V
• Phase: Single
• Frame: 184JMZ
• Enclosure: ODP

Technical Specifications

• Electric Type: Cap Start
• RPM: 3600
• Insulation Class: F
• Shaft Type: Single
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6204-2Z-J/C3 / 6307-2Z-J/C3
• Ambient Temperature: 40 Degrees C
• Amperage: 1.15
