Product Description

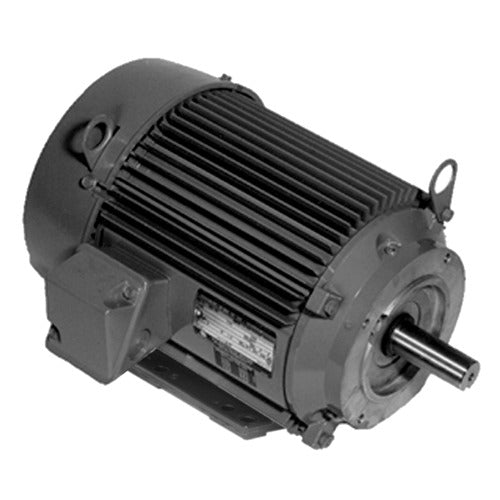

The US-Nidec EE516 Commercial Pump Motor is designed for industrial applications. This three-phase motor has a 56J frame and runs at 3600 RPM, delivering reliable performance for demanding pump systems.
- Three-phase motor
- 56J frame
- 3600 RPM
Product Highlights
This motor features a totally enclosed fan-cooled (TEFC) design and rolled steel construction, ensuring durability and protection against environmental factors. Suitable for a variety of pump applications, it operates with a voltage range of 208-230/460V and has an amperage of 4.4-4.2/2.1. It is built with ball bearings and a C-Face mounting.
Product Information
Standard Information
-
Brand: US-Nidec
-
MPN: EE516
-
UPC Number: 786382066826
-
Country of Origin: Mexico
Technical Specifications
-
Electrical Type: Three Phase
-
RPM: 3600
-
Frame: 56J
-
Diameter: 6.5 inches
-
Enclosure: TEFC
-
Phase: Three
-
Voltage: 208-230/460V
-
Overload Protection: None
-
Material: Rolled Steel
-
Bearings Type: Ball
-
Mounting: C-Face
-
Amperage: 4.4-4.2/2.1
-
Insulation Class: B
-
Service Factor: 1.4
-
HP: 1
-
Body Diameter: 5.9 inches
-
Motor Shaft Design: Threaded
-
Motor Shaft Rotation: CCW
-
Nominal Efficiency: 77%
-
Max. Ambient Temp: 140 Degrees F
