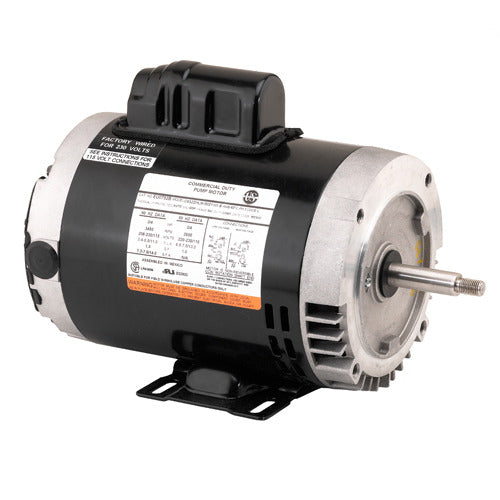

US-Nidec EC1002 General Purpose Motor 1HP 56C 115/208-230V

Product Description

The US-Nidec EC1002 General Purpose Motor is a robust solution for various electrical applications. Designed for reliability and efficiency, this motor provides excellent performance in demanding environments.

• Cap Start Motor
• 1 Horsepower
• C-Face Mounting

Product Highlights

This motor features a 1HP rating with a 3600 RPM speed, suitable for multiple industrial tasks. It operates on 115/208-230V and is equipped with automatic overload protection.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: EC1002
• Frame: 56

Technical Specifications

• Electrical Type: Cap Start
• Horsepower: 1
• RPM: 3600
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115/208-230
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings SE Type: Ball
• Bearings OSE Type: Ball
• Mounting: C-Face
• Amperage: 15.4/8.5-7.7
• Shaft Type: Single
• Insulation Class: B
• Service Factor: 1.4
