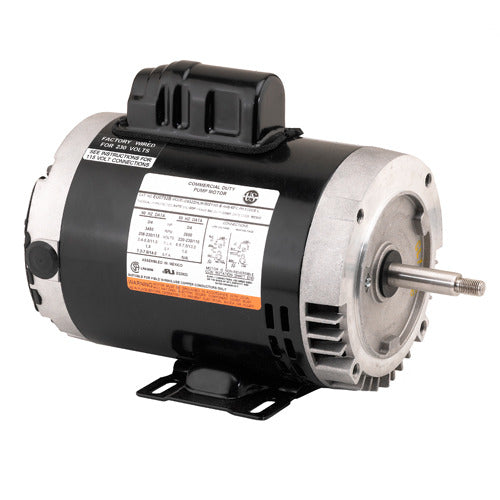

Nidec EC0504B Cap Start C-Face Motor, 1/2 HP, 1800 RPM, 115, 208-230V, 56C Frame

Product Description

The Nidec EC0504B Cap Start C-Face Motor is designed for general-purpose applications requiring reliable performance. This motor delivers 1/2 horsepower and operates at 1800 RPM. It supports voltages of 115, 208, and 230 volts, making it versatile for different setups.

• Item: General Purpose AC Motor
• Motor Type: Capacitor-Start
• HP: 1/2
• Nameplate RPM: 1800
• Voltage: 115/208-230

Product Highlights

This motor is robust and reliable, ideal for various applications in residential and commercial settings. It features a rolled steel material for durability and auto overload protection for safety.

Product Information

Standard Information

• Brand: Nidec
• MPN: EC0504B
• Item Type: General Purpose AC Motor
• Motor Type: Capacitor-Start
• Frame: 56C
• Enclosure: Open Drip Proof (ODP)

Technical Specifications

• HP: 1/2
• RPM: 1800
• Voltage: 115/208-230V
• Amperage: 10.0/5.1-5.0
• Material: Rolled Steel
• Bearings Type: Ball
• Bearings Size: 6203
• Mounting: C-Face
