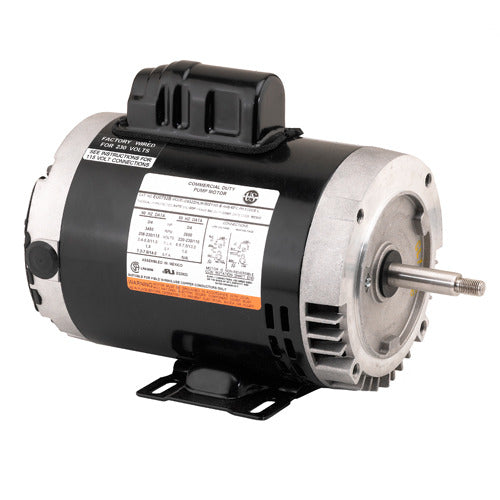

US-Nidec EC0502 General Purpose Motor 1/2 HP 3600 RPM 115/208-230 V

Product Description

The US-Nidec EC0502 general purpose motor delivers reliable performance for various applications. It meets the needs of trade professionals seeking efficiency and durability.

• Electrical type: Cap start

• Horsepower: 1/2 HP

• RPM: 3600 RPM

Product Highlights

US-Nidec EC0502 motor operates at 1/2 HP, offers 3600 RPM, and features a voltage range of 115/208-230 V. With a ball bearing shaft and rolled steel frame, it ensures long-lasting use. An auto overload protection feature adds safety.

Product Information

Standard Information

• Brand: US-Nidec
• Model/MPN: EC0502
• UPC: 786382053475
• Country of Origin: Mexico
• Motor Application: General Purpose

Technical Specifications

• Electrical Type: Cap Start
• Horsepower: 1/2 HP
• RPM: 3600 RPM
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115/208-230 V
• Rotation: REV
• Overload: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: C-Face
• Amperage: 10.8/5.9-5.4
• Shaft Type: Single
• Insulation Class: B
• Service Factor: 1.6
