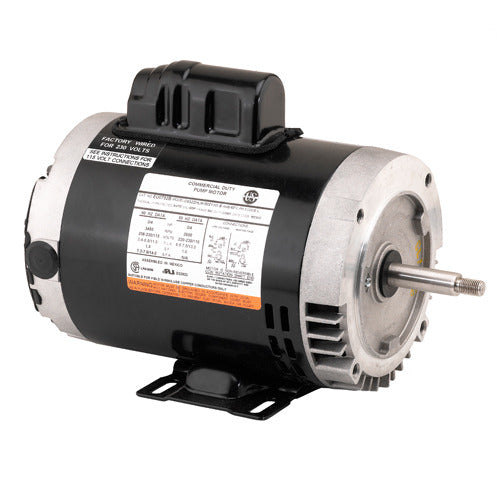

US-Nidec EC0332 General Purpose Motor 1/3 HP 3600 RPM

Product Description

The US-Nidec EC0332 is a general purpose motor designed for various applications. This motor operates at one-third horsepower with a speed of three thousand six hundred revolutions per minute (RPM). It features a single-phase power supply and can function on voltages of one hundred fifteen to two hundred eight or two hundred thirty. The motor is designed with an open drip-proof (ODP) enclosure, suitable for indoor environments.

• Electrical Type: Capacitor Start
• Frame Size: 56
• Bearings: Ball / Ball, Size: 6203

Product Highlights

This motor is versatile, reliable, and ideal for HVAC applications.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: EC0332

Technical Specifications

• Horsepower: 1/3 HP
• Voltage: 115/208-230
• RPM: 3600
• Frame: 56
• Diameter: 6.5 inches
• Overload Protection: Automatic
• Material: Rolled Steel
• Mounting Type: C-Face
• Amperage: 8.0/4.2-4.0
