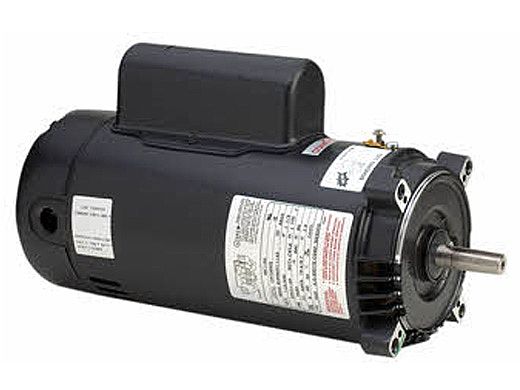

US Motors EB817 Replacement Keyed Shaft Pool Motor 3HP 208-230V 56 Round Frame Energy Efficient

Product Description

The US Motors EB817 replacement keyed shaft pool motor is a 3-horsepower unit designed for 208-230V. Built with a 56 round frame, it is full-rated and energy-efficient. This motor offers key features to make installation and maintenance straightforward.

• Dual voltage selection
• Thermally protected
• Sealed ball bearings

Product Highlights

This motor incorporates premium energy-efficient technology, a switchless design, and a robust stainless steel shaft, ensuring long-lasting performance. Ideal for various pool and spa applications.

Product Information

Standard Information

• Brand: US Motors
• MPN: EB817

Technical Specifications

• Horsepower: 3HP
• Voltage: 208-230V
• Frame: 56 round frame
• Weight: 39 pounds
• Ambient Temperature: 50 degrees Celsius
• Shaft Diameter: 7/16-20 UNF-2A
• Protection: Triple bearing, thermally protected
• Insulation: Class B
• Design Features: Open drip-proof, sealed ball bearings, switchless design, voltage selection device, 6.5 diameter frame
• Frequency: 60Hz
• Length without Shaft: 12.52 inches
