Product Description

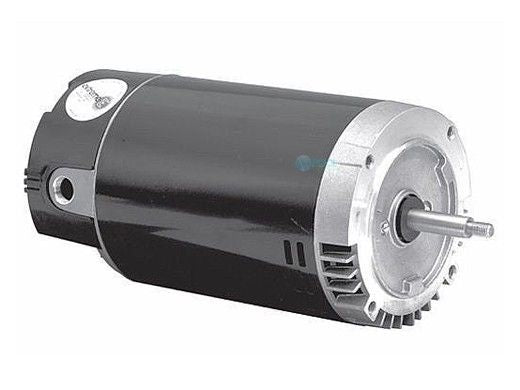

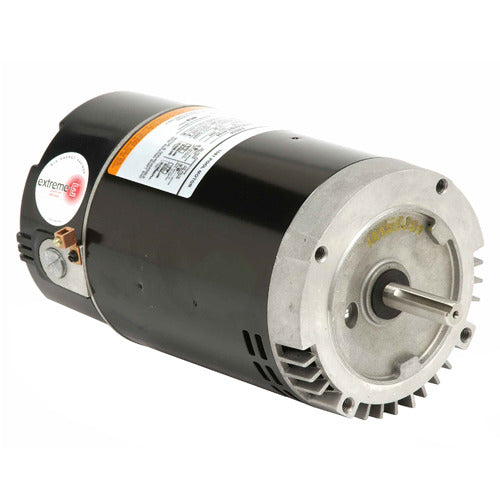

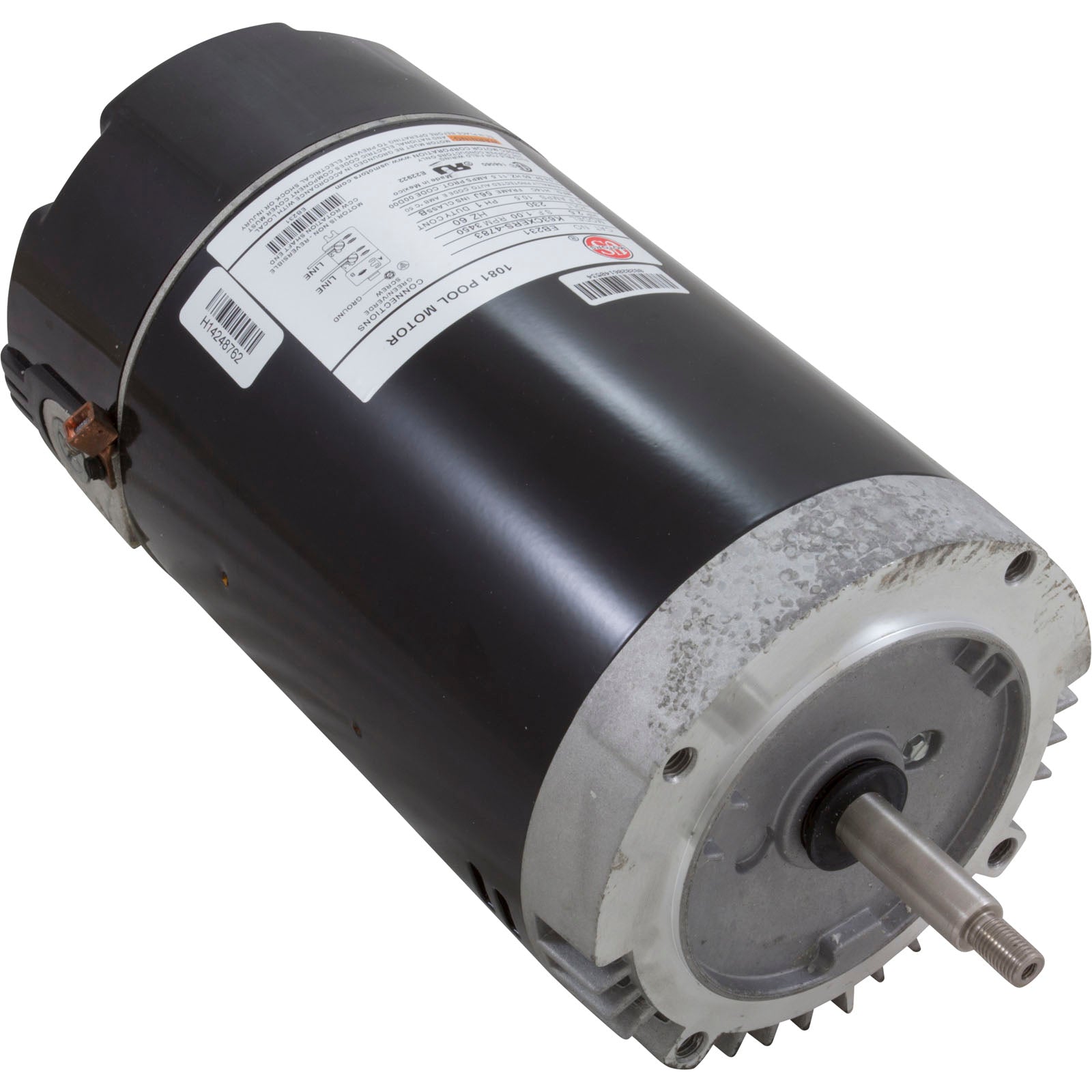

The US Nidec EB231 Motor is an ideal choice for pool and spa applications. This C-Face motor delivers a power of 2.5 horsepower and operates at 230 volts.
- 2.5 Horsepower motor
- C-Face mounting type
- Operates at 230 volts
Product Highlights
The motor features a C-Face mounting and 2.5 horsepower, making it suitable for various pool and spa systems. It operates at 230 volts and features triple bearing protection, ensuring a reliable performance.
Product Information
Standard Information
-
Manufacturer: US Nidec
-
Brand: US Nidec
-
Category: Pool and Spa Motor
Technical Specifications
-
Horsepower: 2.5
-
Voltage: 115/230
-
Frame: 56J
-
RPM: 3450
-
Enclosure: ODP (Open Drip-Proof)
-
Diameter: 6.5 inches
-
Phase: Single
-
Rotation: CCWSE
-
Mounting: C-Face
-
Material: Rolled Steel
-
Insulation Class: B
-
Service Factor: 1
-
Bearings: Ball/Ball
-
Shaft Type: Single
-
Weight: 29.1 lbs
-
Length Less Shaft: 11.77 inches
