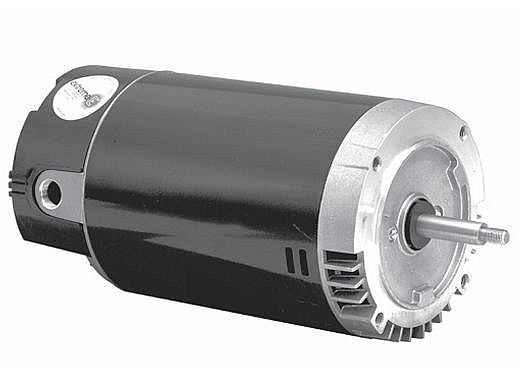

US Motors EB230 Motor 2.0 Horsepower 115v/230v C-Face 1-Speed 56J Pool Spa Motor

Product Description

US Motors EB230 is a versatile motor designed for pool and spa applications. This 2.0 horsepower motor operates on 115v or 230v and features a C-face design with a single speed operation.

• Dual voltage operation
• Single speed
• C-face mount

Product Highlights

This motor is built for ease of installation and maintenance, featuring angled terminal boards for convenient access and a switchless design. It is thermally protected and has a sealed ball bearing construction for durability.

Product Information

Standard Information

• Brand: US Motors
• MPN: EB230
• Category: Motors

Technical Specifications

• Horsepower: 2.0
• Voltage: 115v/230v
• Frame: 56J
• Shaft Threads: 7/16-20 UNF-2A
• Ambient Temperature: 50 Degree C
• Triple Bearing Protection
• Design: 1081
• Insulation: Class B
• Duty: Continuous
• Protection: Thermally Protected
• Bearing Type: Sealed Ball Bearings
• Shaft Material: 300 Series Stainless Steel
• Frequency: 60 Hz
• Length Less Shaft: 12.02 inches
• Weight: 31 lbs
