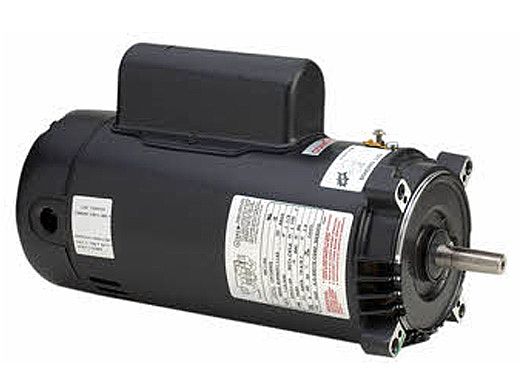

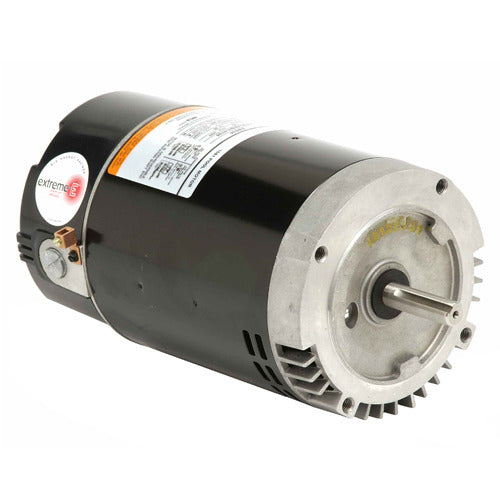

US-Nidec EB120 Pool and Spa Motor 0.5HP 115/230V

Product Description

The US-Nidec EB120 Pool and Spa Motor is a reliable choice for pool and spa applications. This motor operates at 0.5 horsepower and supports 115/230 volts, making it versatile for various installations. The motor features a PSC electrical type and a 56C frame with a 6.5-inch diameter.

• PSC electrical type
• 0.5 horsepower
• 56C frame with 6.5-inch diameter

Product Highlights

The US-Nidec EB120 Pool and Spa Motor is designed for durability and efficiency. It features auto overload protection, a rolled steel material, and ball bearings. This motor is ideal for replacing or upgrading existing pool and spa pumps.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: EB120
• UPC: 786382024864

Technical Specifications

• HP: 0.5
• RPM: 3600
• Frame: 56C
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115/230
• Rotation: CCWSE
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings: Ball / Ball
• Mounting Type: C-Face
• Shaft Type: Single
