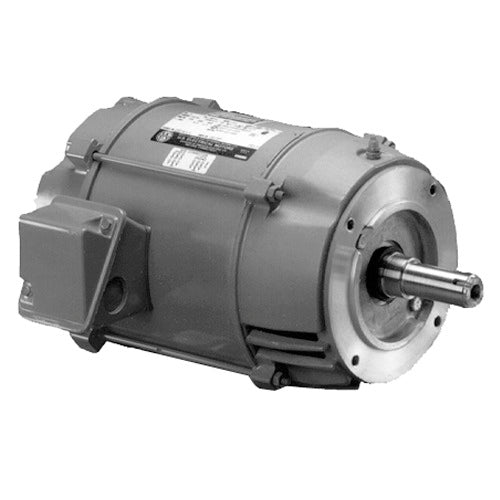

US-Nidec DJ7P2DJ Close Coupled Pump Motor 7.5HP 208-230/460V 213TCZ ODP

Product Description

The US-Nidec DJ7P2DJ is a close coupled pump motor designed for three-phase applications. It delivers 7.5 horsepower with a frame size of 213TCZ and operates at voltages of 208-230/460 volts. The motor is enclosed in open drip proof (ODP) design and constructed from rolled steel.

• Three-phase, 7.5 horsepower
• Voltage: 208-230/460
• ODP enclosure

Product Highlights

The DJ7P2DJ motor is ideal for pump applications that require a reliable and efficient motor. It features ball bearings for smooth operation and a C-face footed mounting for easy installation.

Product Information

Standard Information

• Electrical Type: Three Phase
• Horsepower: 7.5

Technical Specifications

• Frame: 213TCZ
• Enclosure: ODP
• Voltage: 208-230/460
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Bearings Size: 6205-2Z-J/C3 / 6309-2Z-J/C3
• Mounting Type: C-Face / Footed
• Amperage: 20.2-18.5/9.3
• Efficiency: 91.00%
• Insulation Class: F
• Service Factor: 1.15
• Frame Size: 213
• Frame Suffix: TCZ
• Overall Length: 21 inches
