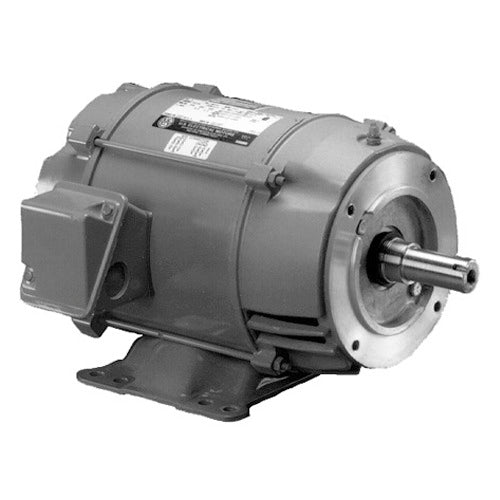

US-Nidec DJ1P3DM Close Coupled Pump Motor 1 HP 145JM Frame 208-230/460V

Product Description

The US-Nidec DJ1P3DM Close Coupled Pump Motor is designed for continuous-duty applications. This rugged motor is suitable for various pumping needs, ensuring reliable performance.

• 1 Horsepower
• 145JM Frame
• 208-230/460 Volt, Three Phase

Product Highlights

Simplified design for easy installation and maintenance in continuous-duty operations.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: DJ1P3DM
• Type: Close Coupled Pump Motor
• Voltage: 208-230/460V AC

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 1
• Frame: 145JM
• Enclosure: ODP
• Phase: Three
• Voltage: 208-230/460V AC
• Rotation: REV
• Overload Protection: None
• Material: Rolled Steel
• Bearings Type: Ball
• Bearings Size: 6203-2Z-J/C3 / 6206-2Z-J/C3
• Mounting: C-Face / Footed
• Amperage: 4/4/2002
• Shaft Type: Single
• Efficiency: 82.50%
• Insulation Class: F
• Service Factor: 1.15
• Frame Prefix: JM
• Frame Suffix: 145
• C Dimension: 15.000 inches
• Body Diameter: 6.4 inches
• Certification: CE, CSA
