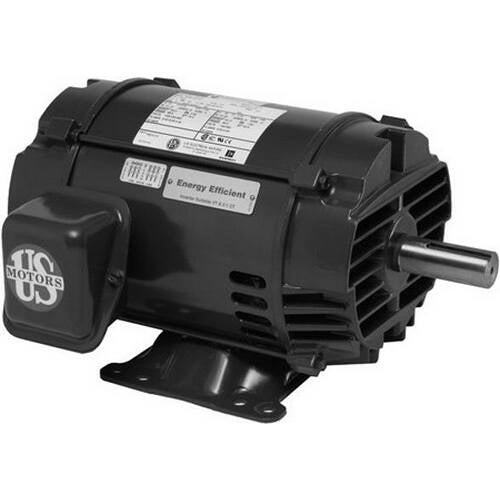

U.S. Motors D7P2D General Purpose Three Phase ODP Horizontal - Footed Motor

Product Description

The U.S. Motors D7P2D is a three-phase motor that operates efficiently in various applications including industrial machinery, HVAC systems, and material handling. This general-purpose motor delivers seven and a half horsepower at 1800 RPM, making it suitable for demanding tasks. It is designed for use with 208-230/460 voltage, ensuring compatibility with a wide range of electrical systems.

• Motor Type: General Purpose
• Power Rating: 7.5 HP
• Speed: 1800 RPM

Product Highlights

This motor features an ODP (Open Drip Proof) enclosure, which allows for proper airflow while protecting against contaminants. It comes with a robust rolled steel frame and a 213T frame size, ensuring durability. The D7P2D is ideal for applications where high performance and reliability are critical.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D7P2D

Technical Specifications

• Service Factor: 1.15
• Poles: 4
• Enclosure: ODP
• Frame Material: Rolled Steel
• Insulation Class: F
• Full Load Efficiency: 91%
• Frequency: 50/60 Hz
• Voltage Rating: 208-230/460
• Full Load Amps: 20.2-18.5/9.3
• Weight: 60.0 lb
• EAN: 786382021221
