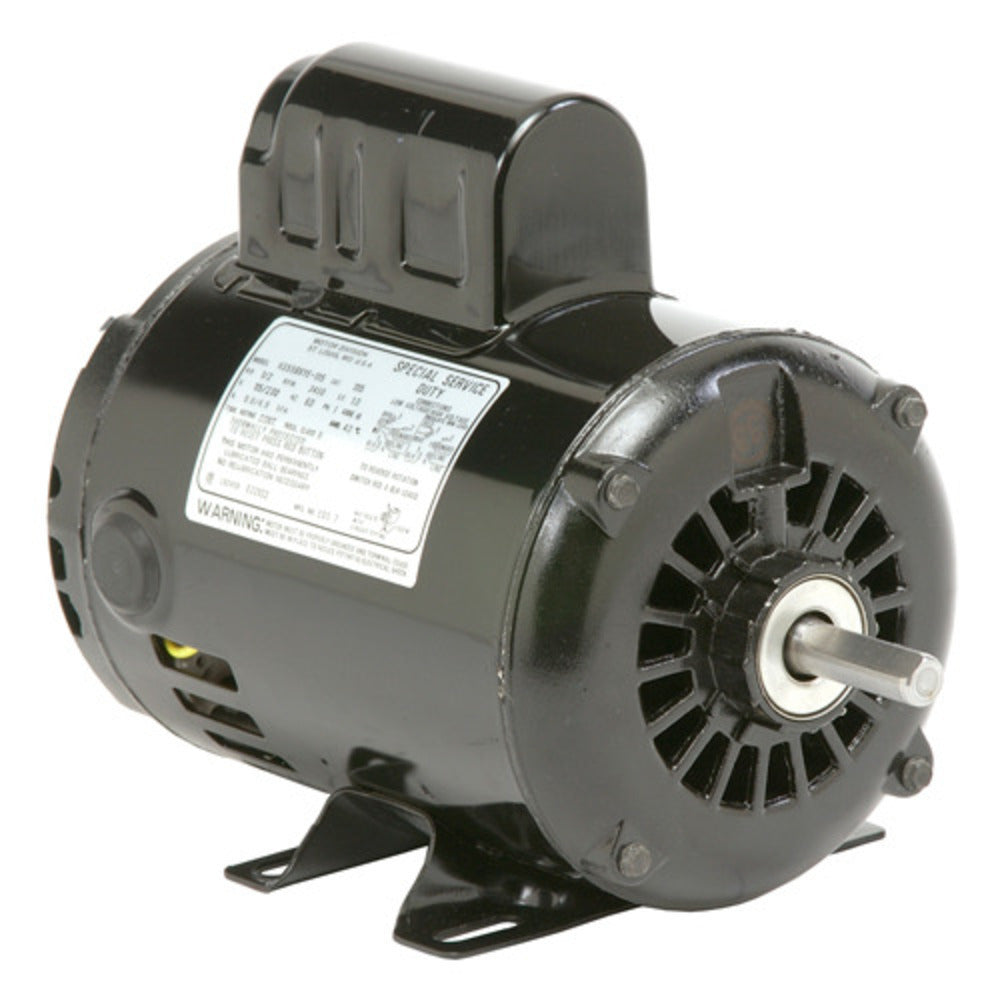

US-Nidec D7C1K Air Compressor Motor 7 1/2 HP

Product Description

The US-Nidec D7C1K Air Compressor Motor is designed for stationary air compressor applications. This motor features a seven and a half horsepower rating with a single-phase design, providing reliable performance. It operates at a voltage of two hundred thirty volts and a speed of three thousand four hundred ninety RPM. The motor is built with a rigid base mount and features a ball bearing design for durability.

• Voltage: 230V AC
• Amperage: 30.0
• Frame: 184T

Product Highlights

This air compressor motor is suitable for various tasks that require robust air compression. The open drip-proof enclosure protects against moisture while allowing cooling airflow, ensuring longevity and efficiency.

Product Information

Standard Information

• Electrical Type: Capacitor-Start
• Duty Cycle: Continuous

Technical Specifications

• HP: 7 1/2
• RPM: 3,490
• Frame Size: 184T
• Enclosure Design: Open Dripproof
• Service Factor: 1.2
• Max Ambient Temp: 104 Degrees F
• Shaft Diameter: 1 1/8 inches
• Shaft Length: 2 7/8 inches
