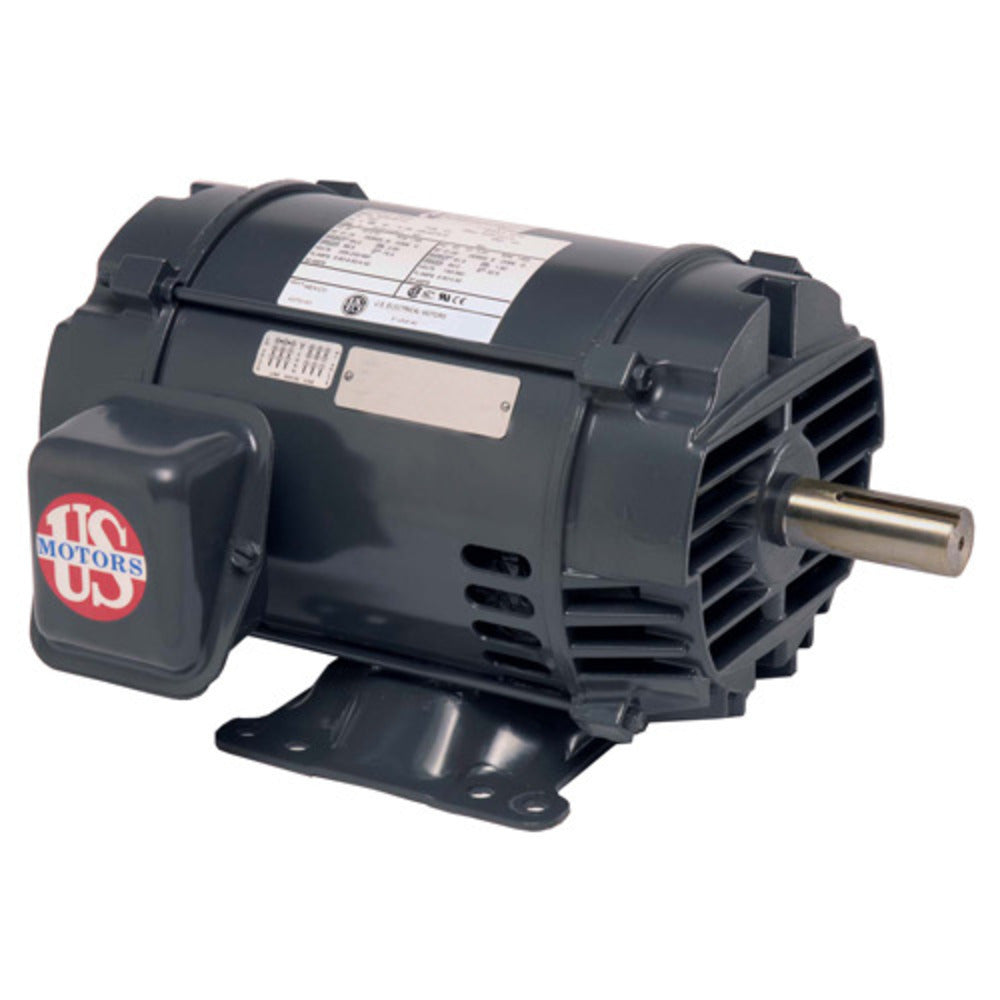

U.S. Motors D50P2D General Purpose Three Phase ODP Horizontal - Footed Motor

US MOTORS
Brand: US MOTORS
SKU: D50P2D
Availability: In Stock

Ships via freight in 1-3 business days

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$2,776.85
$2,776.85
Manuals:
LTL Delivery

This product weighs 415 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The U.S. Motors D50P2D is a general purpose three phase motor. This motor is suitable for various applications including pumps, fans, and compressors. It has a power rating of fifty horsepower and operates at a speed of one thousand eight hundred revolutions per minute.

  • Applications: Pumps, fans, compressors, and more.
  • Voltage ratings: 208-230/460 and 190/380.
  • Frame size: 326T with ODP enclosure.

Product Highlights

Ideal for environments where contaminants are minimal. Designed for continuous duty operations, this motor is efficient and reliable.

Product Information

Standard Information

  • Brand: U.S. Motors
  • MPN: D50P2D

Technical Specifications

  • Phase: Three Phase
  • Insulation: F
  • Enclosure: ODP
  • RPM: 1800
  • Voltage Rating: 208-230/460 & 190/380
  • Duty: Continuous Duty
  • Frame: 326T
  • C Dimension: 27.2 inches
  • Full Load Amps: 126-113/56
  • Service Factor: 1.15
  • Full Load Efficiency: 94.5%
  • Poles: 4
  • Weight: 415.0 LB
  • EAN or UPC: 786382096823
