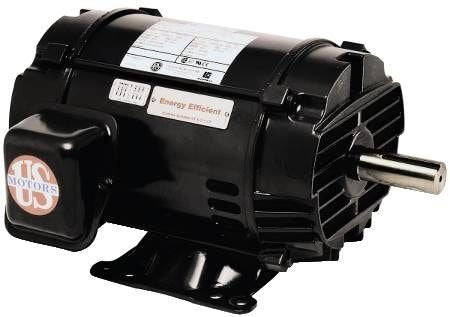

U.S. Motors D3P3D ODP 3 HP 3-Phase 1175 RPM Motor

Product Description

The U.S. Motors D3P3D is a three-phase motor designed for general-purpose applications. This motor has a power rating of three horsepower and operates at a speed of one thousand one hundred seventy-five RPM. It features an open drip-proof (ODP) enclosure, making it suitable for various environments, particularly in heating and cooling systems.

• Three-phase design for efficient power delivery.
• Open drip-proof enclosure for better heat dissipation.
• Standard voltage ratings of 208-230/460 volts.

Product Highlights

This durable motor is ideal for general applications in HVAC, industrial systems, and commercial uses. It is equipped with high-quality ball bearings and a rigid base for stability.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D3P3D

Technical Specifications

• Electrical Type: Three Phase
• Power: 3 HP / 2.2 KW
• Speed: 1175 RPM
• Frame Size: 213T
• Enclosure Type: ODP
• Voltage: 208-230/460 V
• Amperage: 9.4-8.9/4.4 A
• Bearings Type: Ball / Ball
• Mounting: Horizontal / Footed
