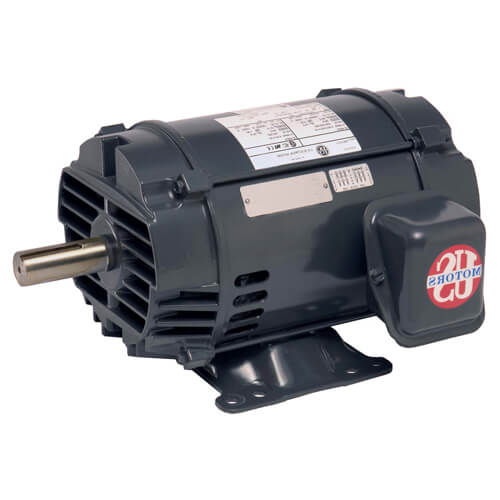

U.S. Motors D34P2AH General Purpose Motor 3/4 HP 208-230/460V 1725/1425 RPM

Product Description

The U.S. Motors D34P2AH is a three-phase general purpose motor with a power rating of three-fourths HP and operates at both 208-230 and 460 volts. Designed for reliable performance, this motor is suitable for pumps, fans, compressors, and various material handling applications. With a robust construction featuring a rolled steel frame and an open drip-proof (ODP) enclosure, it is built to withstand rigorous operational conditions.

• Rated at three-fourths horsepower
• Voltage compatibility of 208-230/460V
• Operates at speeds of 1725 and 1425 RPM

Product Highlights

This motor is designed to operate efficiently in various environments. The D34P2AH motor features a service factor of 1.25 and includes regreasable bearings for extended service life.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D34P2AH
• Weight: 25.43 LB
• Duty: Continuous Duty

Technical Specifications

• Enclosure: ODP - Open Drip Proof
• Frame: 56
• Full Load Amps: 2.8-2.8/1.4
• Insulation: Class B
• Efficiency: 81.1%
• Poles: 4
• Mounting Type: Rigid
• Service Factor: 1.25
• RPM: 1800 (Full Load RPM: 1425, 1725)
