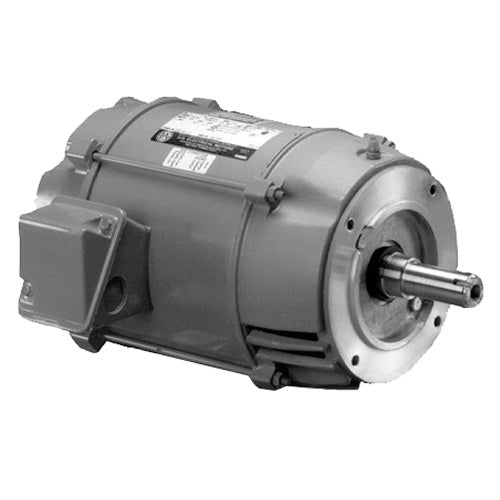

US-Nidec D32P1ACR General Purpose Motor 1 1/2 HP ODP

Product Description

The US-Nidec D32P1ACR is a general purpose motor designed for three-phase applications. This motor operates at one and one-half horsepower and is built for reliability and efficiency. It features an open dripproof (ODP) enclosure and is suitable for various industrial settings.

• Electrical Type: Three Phase
• Voltage: 208-230/460
• Amperage: 4.7-4.4/2.2

Product Highlights

This motor provides a service factor of 1.15 and is made from rolled steel, ensuring durability for continuous operation.

Product Information

Standard Information

• Motor Type: General Purpose Motor
• Model: D32P1ACR

Technical Specifications

• Horsepower: 1 1/2
• KW: 1.1
• Frame Size: 56C
• Diameter: 6.5 inches
• Stack Height: 1.75 inches
• Enclosure: ODP
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
