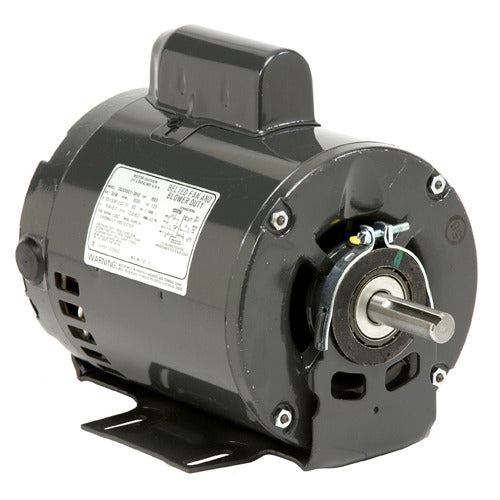

U.S. Motors D32CP2PH9 General Purpose Single Phase ODP Resilient Motor

Product Description

The U.S. Motors D32CP2PH9 is a general purpose single phase ODP resilient motor designed for various applications. This motor offers a power rating of one and a half horsepower and operates at a speed of eighteen hundred RPM. It features a resilient mounting setup, making it suitable for a variety of installations.

• Powerful one and a half horsepower motor
• Operating speed of eighteen hundred RPM
• Resilient mounting for shock absorption

Product Highlights

This motor is ideal for general purpose applications needing reliable performance and durability. It is suitable for continuous duty use, providing efficient operation in various settings.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D32CP2PH9

Technical Specifications

• Voltage Rating: 115/230
• Full Load Amps: 13.4/6.7
• RPM: 1800
• Frame Size: 56H
• Weight: 24.0 LB
• Enclosure Type: ODP (Open Drip Proof)
• Poles: 4
• Full Load Efficiency: 83.8%
