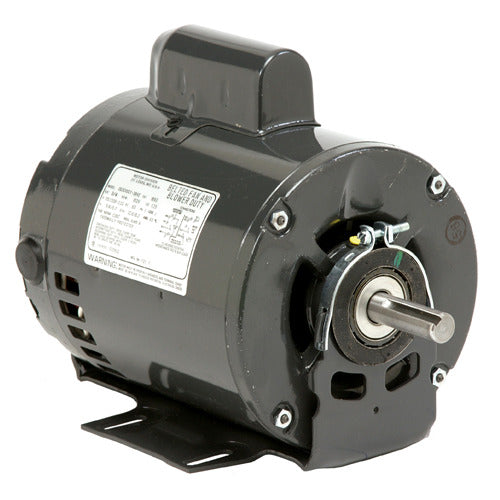

US-Nidec D1CPA2P9 General Purpose Motor 1 HP 1725 RPM

Product Description

The US-Nidec D1CPA2P9 General Purpose Motor is designed for various industrial and commercial applications. This motor operates with a power of 1 HP and a speed of 1725 RPM.

• Capacitor Start / Capacitor Run
• Frame size 56
• Voltage 115/230

Product Highlights

This motor is suitable for a range of general-purpose applications, offering reliable performance and easy installation with its cradle mounting. The rolled steel material ensures durability, while the open dripproof (ODP) enclosure protects against moisture and debris. The auto overload protection feature adds an extra layer of safety. It runs efficiently with a ball bearing system on both ends.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: D1CPA2P9

Technical Specifications

• Electrical Type: Cap Start / Cap Run
• Horsepower: 1
• Power: 0.8 kW
• Stack: 2.75 inches
• RPM: 1725
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: Open Dripproof (ODP)
• Phase: Single
• Voltage: 115/230
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Mounting: Cradle
• Amperage: 8.8/4.4 A
• Capacitor Run MFD: 70.00 MFD
• Capacitor Run Voltage: 280 V
• Capacitor Start MFD: 709.00 MFD
