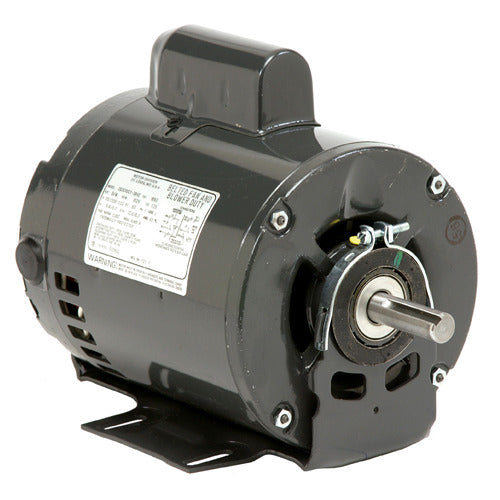

U.S. Motors D1CPA1PH9 General Purpose Single Phase ODP Cradle Motor

Product Description

The U.S. Motors D1CPA1PH9 is a single-phase general-purpose ODP cradle motor designed for various industrial applications. With a power rating of one horsepower and a speed of three thousand six hundred RPM, this motor is suitable for air compressors, pumps, and conveyors.

• 1 HP power rating
• 3600 RPM speed
• 115/230 voltage rating

Product Highlights

This motor features automatic reset thermal protection and operates efficiently at 60 Hz with a continuous duty rating, making it reliable for industrial use.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D1CPA1PH9

Technical Specifications

• Service Factor: 1.25
• Enclosure Designation: ODP - Open Drip Proof
• Full Load Amps: 9.3/4.3
• Duty: Continuous Duty
• Voltage Rating: 115/230
• Full Load RPM: 3450 RPM
• C Dimension: 13.3 in
• Mounting: Cradle
• Thermal Protection: Automatic Reset
• Insulation: B
• Phase: Single Phase
• Poles: 2
• Efficiency: 80.4%
• Weight: 28.0 LB
• EAN: 786382110826
