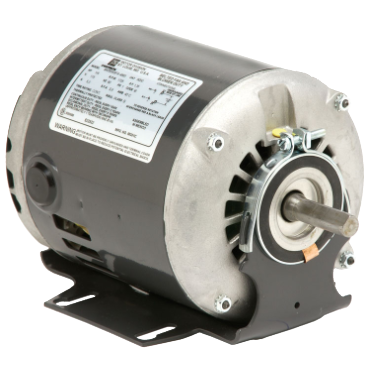

U.S. Motors D16B2N4Z9 General Purpose Single Phase ODP Cradle/Stud Motor

Product Description

The U.S. Motors D16B2N4Z9 is a general purpose single phase open drip proof motor. With a power rating of 1/6 hp and operating at 1800 rpm, this motor is designed for reliable performance in various applications.

• Efficiency: 1/6 horsepower
• Voltage: 115 volts
• Mounting Type: Cradle/Stud

Product Highlights

This motor provides excellent functionality for tasks requiring continuous duty operations. It is suited for both industrial and home use, offering versatility across several applications.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: D16B2N4Z9

Technical Specifications

• Service Factor: 1.35
• Enclosure Designation: ODP - Open Drip Proof
• Drive End Bearing: BALL
• Full Load RPM: 1725 RPM
• Phase: Single Phase
• Motor Application: General Purpose, Split Phase
• Poles: 4
• Voltage Rating: 115 Volts
• Full Load Amps: 4.2
• Insulation Class: B
• Weight: 15.0 lb
