Nidec-US Motors D14B3NCR | 1/4hp 115v1ph1140rpm 56fr ODP

Product Description

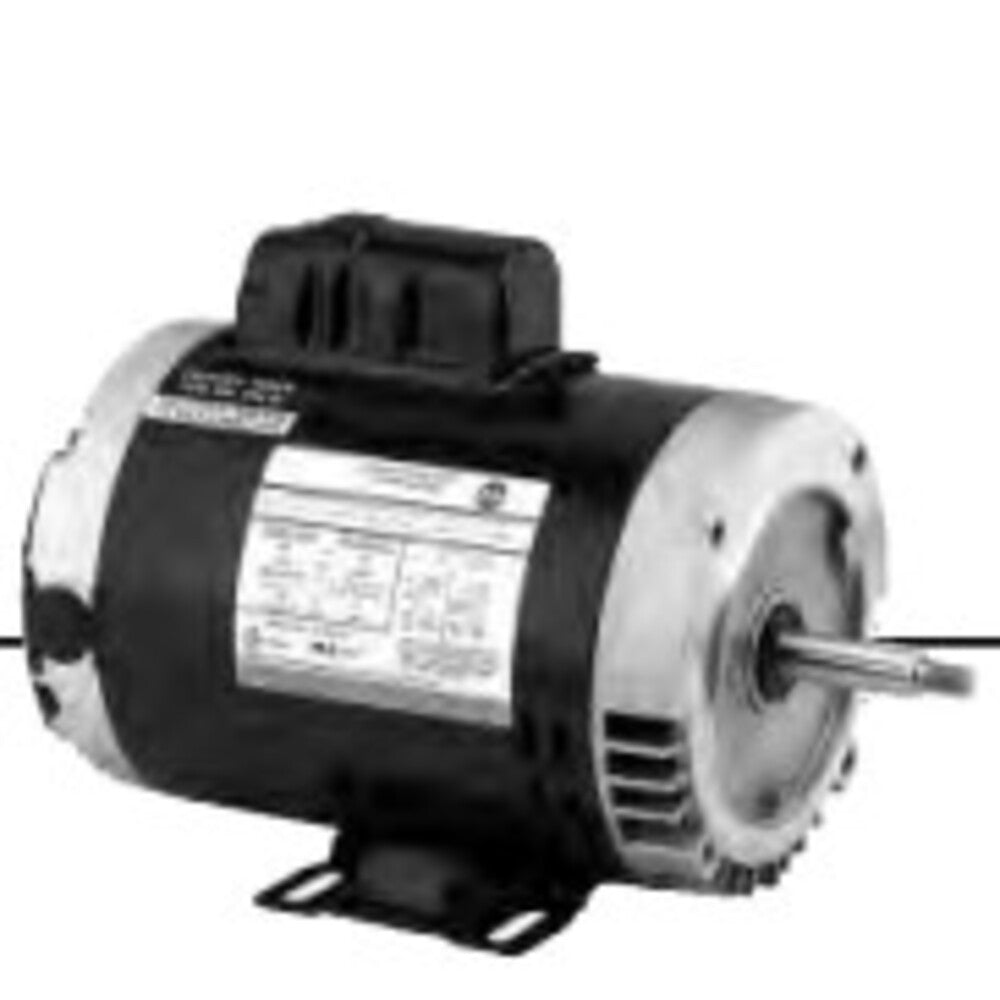

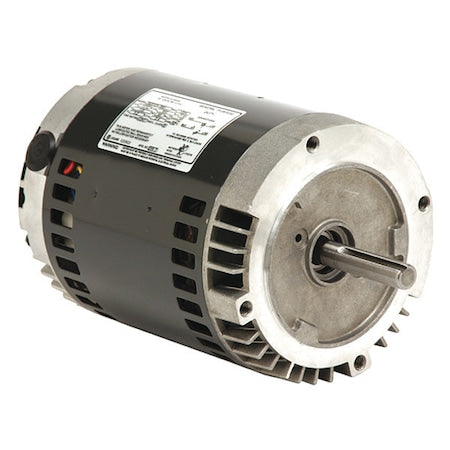

The Nidec-US Motors D14B3NCR is a versatile 1/4 horsepower electric motor designed to meet the needs of various industrial applications. This motor is enclosed in a 56-frame ODP casing, protecting it from dust and moisture. Operating at 115 volts on a single-phase power supply, it delivers a speed of 1140 RPM, making it ideal for medium-duty applications in both residential and commercial settings.

• 1/4 horsepower motor with 1140 RPM
• 115 volts single-phase power
• 56-frame ODP enclosure

Product Highlights

This motor is suitable for use in HVAC systems, pumps, and various other industrial applications. The open drip-proof design ensures longevity and reliability in different environments.

Product Information

Standard Information

• Brand: Nidec-US Motors
• Item Number: D14B3NCR

Technical Specifications

• Electrical Type: Capacitor Start
• Horsepower: 1/4
• Power: 0.2 kW
• Speed: 1140 RPM
• Frame: 56C
• Diameter: 6.5 inches
• Enclosure: Open Drip Proof (ODP)
• Phase: Single
• Voltage: 115
• Rotation: Reverse
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Mounting: C-Face
• Amperage: 5.5
