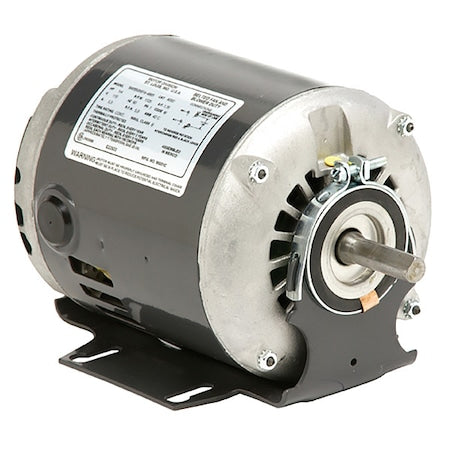

US-Nidec D14B2NZA9 General Purpose Motor 1/4 HP 115V 56Z Frame Single Phase 1725 RPM

Product Description

The US-Nidec D14B2NZA9 General Purpose Motor is engineered for a variety of applications. This motor features a 1/4 HP output with a single-phase split-phase design, making it ideal for general purpose use. It operates at 115 volts and delivers 1725 RPM, housed in a robust 56Z frame.

• 1/4 HP motor with single-phase operation
• Runs at 1725 RPM for reliable performance
• 56Z frame ensures durable use in various applications

Product Highlights

This general-purpose motor is suitable for a broad range of uses, providing consistent and efficient operation. It is designed with open drip-proof construction, which permits better cooling and protection from contaminants, enhancing motor lifespan.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: D14B2NZA9

Technical Specifications

• Electrical Type: Split Phase
• HP: 1/4
• KW: 0.2
• RPM: 1725
• Frame: 56Z
• Diameter: 6.5 inches
• Enclosure: Open Drip Proof (ODP)
• Phase: Single
• Voltage: 115V AC
• Rotation: REV
• Amperage: 5.4
• Mounting: Cradle / Stud
• Material: Rolled Steel
• Bearings Type: Ball
• Bearings Size: 6203
• Insulation Class: B
• Frequency: 60 Hz
• Max. Ambient Temperature: 40 degrees C
• Duty Cycle: Continuous
• Shaft Type: Single
• Weight: 15 lb
