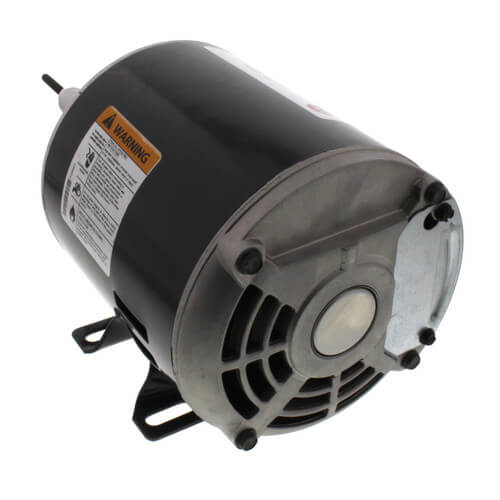

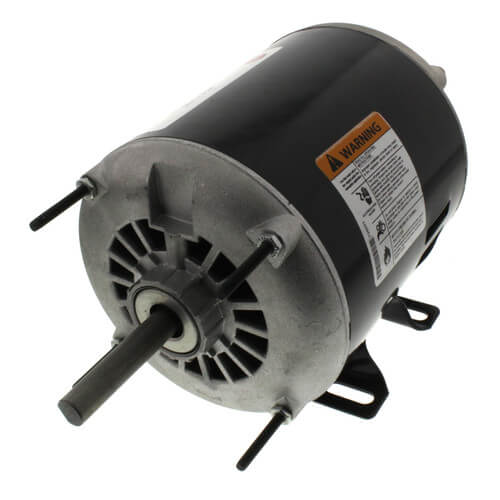

US Motors D14B2N4Z 1/4 HP 115V 1725RPM Split Phase Motor

Product Description

The US Motors D14B2N4Z is a versatile and efficient motor ideal for industrial and commercial use. This 1/4 HP motor operates at 115 volts with a single phase, delivering a speed of 1725 RPM. It features a robust build that ensures reliable performance for various applications such as HVAC, material handling, and manufacturing tasks.

• 1/4 HP, 115V, 1725 RPM
• Split Phase Motor
• Open Drip Proof Enclosure

Product Highlights

The US Motors D14B2N4Z is designed for demanding applications. It features a durable rolled steel construction and supports both clockwise and counterclockwise rotation for flexibility in installation.

Product Information

Standard Information

• Brand: US Motors
• MPN: D14B2N4Z
• UPC: 786382057800
• Country of Origin: Mexico

Technical Specifications

• Horsepower: 1/4 HP
• Voltage: 115V
• Amperage: 5.3 A
• RPM: 1725
• Frame: 48Z
• Enclosure: Open Drip Proof
• Phase: Single
• Mounting: Rigid Base
• Ambient Temperature: 40°C
• Insulation Class: A/B
• Shaft Type: Single Split Phase
• Rotation: CW/CCW
• Duty: Continuous
• Bearing Type: Ball
