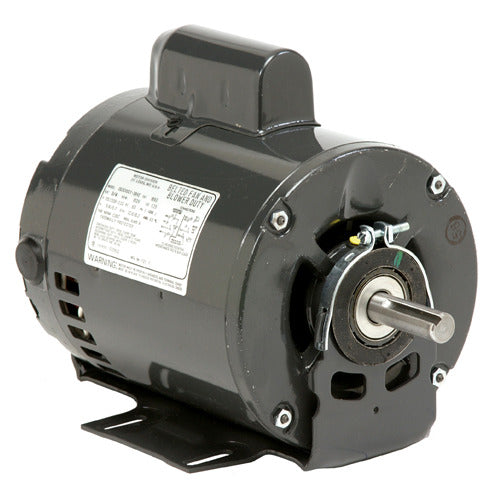

US Motors D13CP2P49 Motor 1/3HP 1725RPM 115/230V 48

Product Description

The US Motors D13CP2P49 is a 1/3 horsepower motor designed for general-purpose use. With a speed of 1725 RPM, this motor operates on a voltage of 115/230V and fits a frame size of 48. It features an open dripproof (ODP) enclosure and is made from rolled steel.

• 1/3HP power
• 1725 RPM speed
• 115/230V voltage

Product Highlights

This motor is ideal for various applications requiring reliable, consistent performance. Its resilient base mounting and capacitor start-run system ensure efficient operation. Key features include a robust rolled steel construction and ball bearings for durability.

Product Information

Standard Information

• Brand: US Motors
• MPN: D13CP2P49
• Power: 1/3HP
• Speed: 1725 RPM
• Voltage: 115/230V

Technical Specifications

• Electrical Type: CAP START / CAP RUN
• KW: 0.3
• Frame: 48
• Diameter: 5.6 inches
• Enclosure: ODP
• Phase: Single
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Mounting: Resilient Base
• Amperage: 3.8/1.9
• Shaft Type: Single
• Cap Run MFD: 25.00 MFD
• Cap Run Voltage: 370 V
• Cap Start MFD: 238.00 MFD
• Efficiency: 72.40%
• Full Load Amps: 3.8/1.9
• Frequency: 60 HZ
• Insulation Class: B
• Locked Rotor Amps: 24.73
• Locked Rotor Torque: 72.71 OZ/FT
