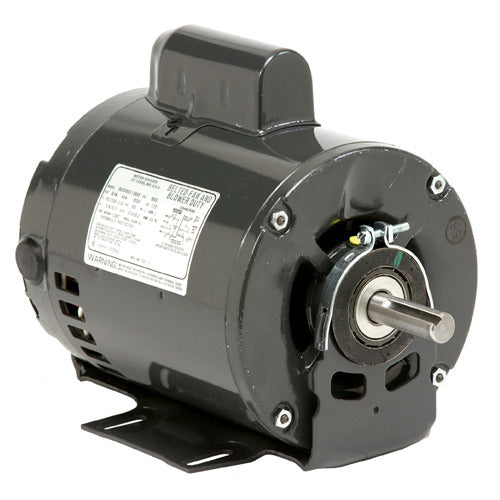

US-Nidec D13C4P9 General Purpose Motor 1/3HP 115/230V 850RPM

Product Description

The US-Nidec D13C4P9 General Purpose Motor is a reliable and efficient solution for various applications. This capacitor start motor provides high performance and is designed for versatile use.

• Capacitor Start/Run
• 1/3 HP with 850 RPM
• Open Dripproof Enclosure

Product Highlights

The US-Nidec D13C4P9 motor features a resilient base, rolled steel construction, and ball bearings. It operates on 115/230V and is meant for single-phase applications, ensuring consistent performance.

Product Information

Standard Information

• Brand: US-Nidec
• Model: D13C4P9
• Type: General Purpose Motor
• Enclosure: Open Dripproof (ODP)

Technical Specifications

• HP: 1/3
• KW: 0.3
• RPM: 850
• Voltage: 115/230
• Diameter: 6.5 inches
• Frame: 56
• Phase: Single
• Shaft Type: Single
• Rotation: REV
• Amperage: 8.7/4.3
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Mounting Type: Resilient Base
• Cap Start MFD: 357.00 MFD
• Efficiency: 55.90%
• Frequency: 60 HZ
• Insulation Class: B
• Locked Rotor Amps: 26.96
• Poles: 8
• Service Factor: 1.35
