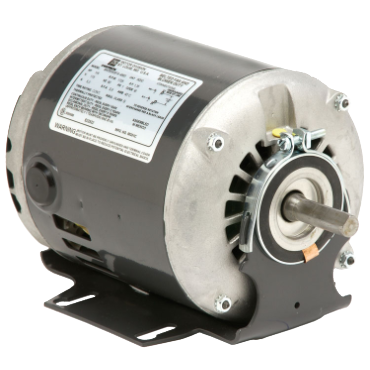

U.S. Motors D13B2NZA9 General Purpose Single Phase ODP Resilient Motor

Product Description

The U.S. Motors D13B2NZA9 is a general purpose single phase motor designed for reliable performance. This motor operates at 1/3 horsepower and a speed of 1800 RPM. It features an open drip-proof (ODP) enclosure suitable for various applications.

• Voltage Rating: 115 volts
• Full Load Amps: 6
• Durable resilient base mounting

Product Highlights

Ideal for HVAC, commercial, and industrial applications, the motor provides consistent operation in split-phase designs. Its ODP enclosure protects the motor from debris while allowing cooling airflow.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D13B2NZA9

Technical Specifications

• Voltage Rating: 115 volts
• HP: 1/3
• RPM: 1800 rpm
• Full Load Amps: 6
• Enclosure: ODP - Open Drip Proof
• Frame: 56, 56Z
• Service Factor: 1
• Insulation Class: B
• Mounting: Resilient Base
• Duty: Continuous Duty
• Weight: 15.0 lb
• C Dimension: 9.8 inches
• Poles: 4
• Drive End Bearing: Sleeve
• Open End Bearing: Sleeve
