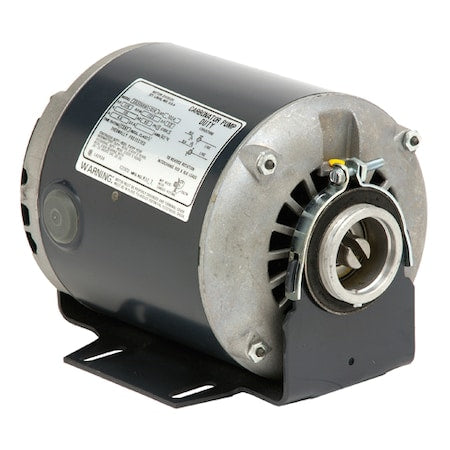

U.S. Motors D13B10N49 Motor 1/3 HP 1725/1140 RPM 115V

Product Description

The U.S. Motors D13B10N49 is a reliable and durable motor designed for industrial applications. This 1/3 horsepower motor operates at 115 volts and offers dual speeds of 1725 and 1140 RPM. It is suitable for various industrial uses, such as pumps, fans, blowers, compressors, and conveyors.

• 1/3 HP motor
• 115 volts
• Speeds: 1725/1140 RPM

Product Highlights

This motor features a cast-iron frame and end shields, a precision-machined rotor, and high-quality bearings. It is thermally protected to prevent overheating and ensure long-term reliability.

Product Information

Standard Information

• Item Number: D13B10N49
• Brand: U.S. Motors
• Horsepower: 1/3
• Voltage: 115V
• Speed: 1725/1140 RPM

Technical Specifications

• Electrical Type: Split Phase
• KW: 0.3
• Stack: 2.25
• Frame: 48
• Diameter: 5.6 inches
• Enclosure: ODP
• Phase: Single
• Rotation: REV
• Overload: None
• Material: Rolled Steel
• Bearings Type: Sleeve / Sleeve
• Mounting: Resilient Base
• Amperage: 6.4/4.0
